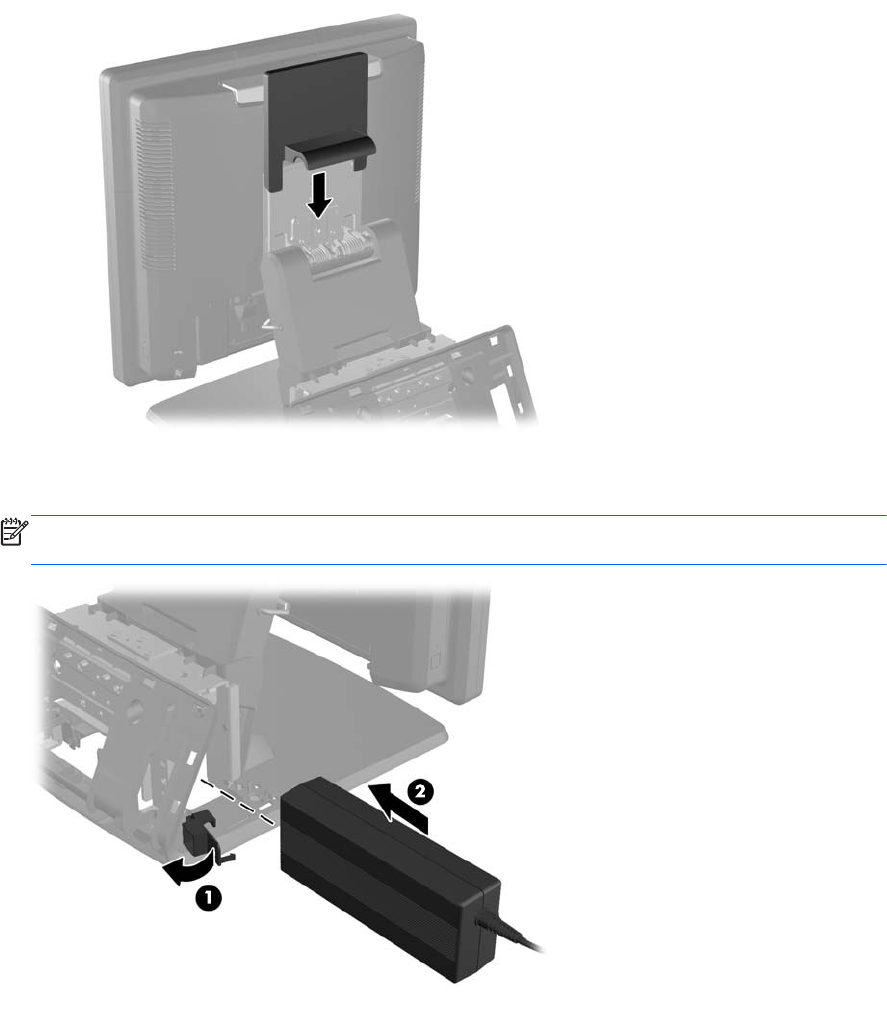

8. Slide the mounting bracket cover down over the stand's mounting bracket.
9. Rotate open the small door at the base of the power supply housing (1) and slide the power
supply brick into the housing (2).
NOTE: Make sure that the side of the power supply with the label and rubber foot are facing
the front of the unit when sliding in the power supply.
