Hardware Reference Manual
Table Of Contents
- Product Features
- Hardware Upgrades
- Tools Needed
- Warnings and Cautions
- Mounting the RP7 to a Wall or Swing Arm
- Installing the RP7 Adjustable Stand
- Routing Cables to External Devices
- Installing Optional Integrated USB Modules
- Installing an Optional HP Retail RP7 10.4” Customer Display
- Installing an Optional HP Retail RP7 VFD Customer Display
- Installing Additional Memory
- Removing and Installing a Hard Drive
- Replacing the Battery
- Using the USB Security Cover
- Securing the RP7 to a Counter Top
- Installing an External Security Lock
- Configuring the Software
- Troubleshooting
- Electrostatic Discharge
- Computer Operating Guidelines, Routine Care and Shipping Preparation
- Index

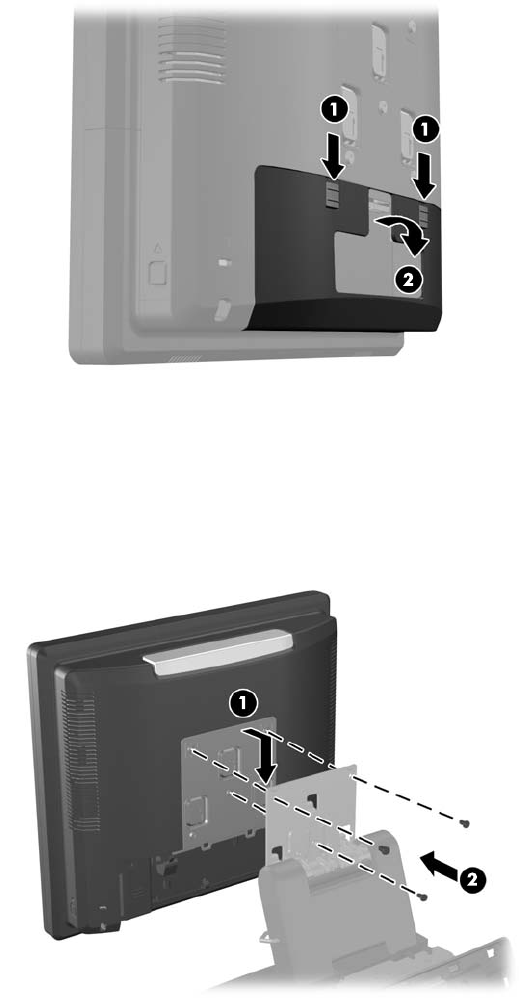

6. Slide down the two levers on the upper corners of the rear I/O panel (1) and rotate the cover off
(2).
7. Attach the RP7 display head to the stand's mounting bracket by aligning the slots on the display
head with the hooks on the mounting bracket and sliding the display down (1). Install the three
screws included with the stand through the mounting bracket and into the display head to secure
it in place (2).
10 Chapter 2 Hardware Upgrades ENWW
