HP Designjet Z2100 Printing Guide [EFI Designer Edition RIP] - Printing your design [Adobe Illustrator CS2 - Mac OS X]

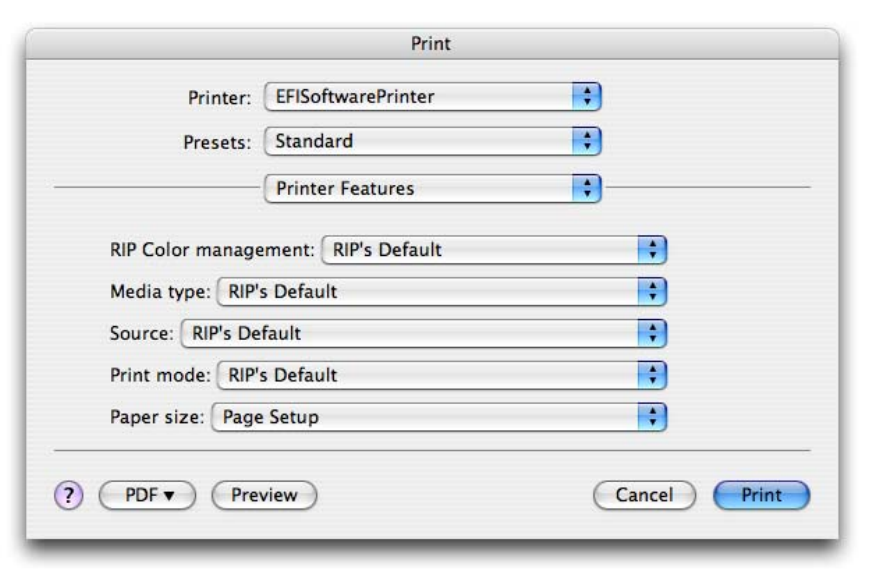

• Select Print.
10. Adobe Illustrator Print… settings:
• General (left hand menu):
o Media > Size: Defined by Driver.
o Options: Select the scaling option you need.
• Color Management (left hand menu):
o Print Method > Color Handling: Let PostScript® determine colors.
You don’t need to worry about the profiles and rendering intent because you will
select Let PostScript
® printer determine colors option in the application, then,
the RIP will determine which source profile and rendering intent should be used for
the conversion to the print space, these are the Image profiles settings of the RIP
Color Preferences. The application color settings will be overridden.
7
