Component identification 9

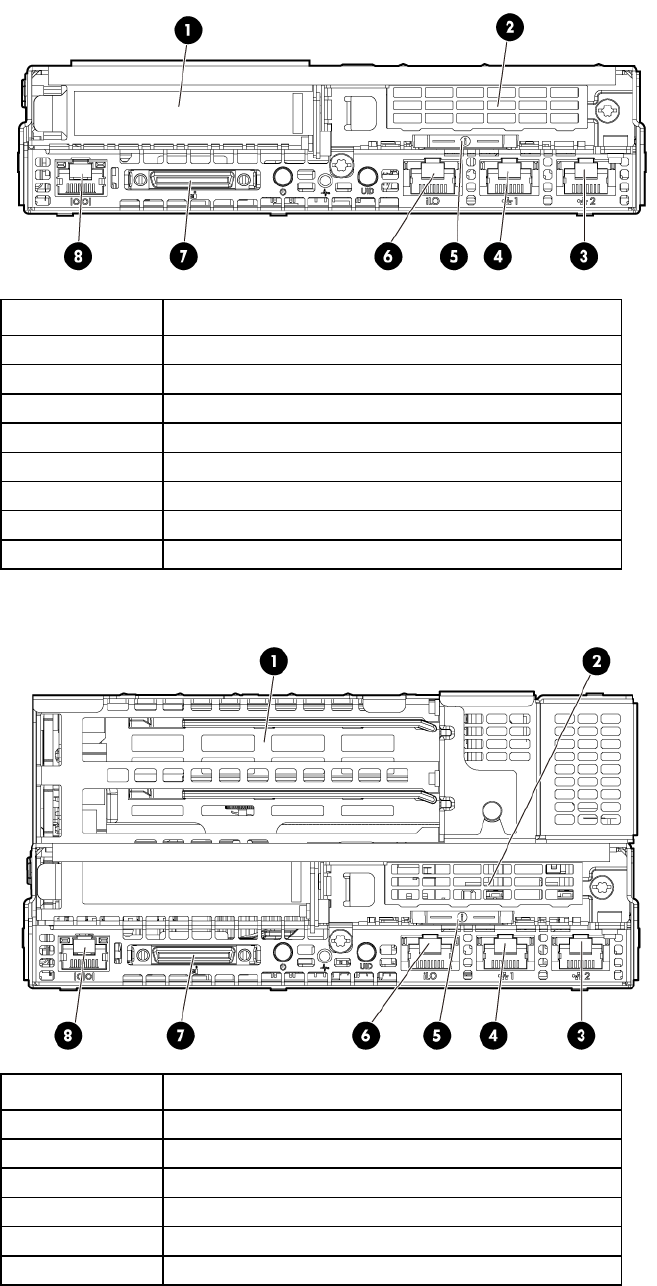

• 1U node rear panel components
Item Description
1
PCI slot cover
2
FlexibleLOM slot cover
3
NIC 2 port
4
NIC 1 port
5
Serial number/iLO information pull tab
6
iLO connector
7
SUV connector (1 serial/ 2 USB 2.0/ 1 video)
8
Serial connector (RJ45)
• 2U node rear panel components
Item Description
1
PCI slot cover
2
FlexibleLOM slot cover
3
NIC 1 port
4
NIC 2 port
5
Serial number/iLO information pull tab
6
iLO connector
