Hardware options installation 55
6.

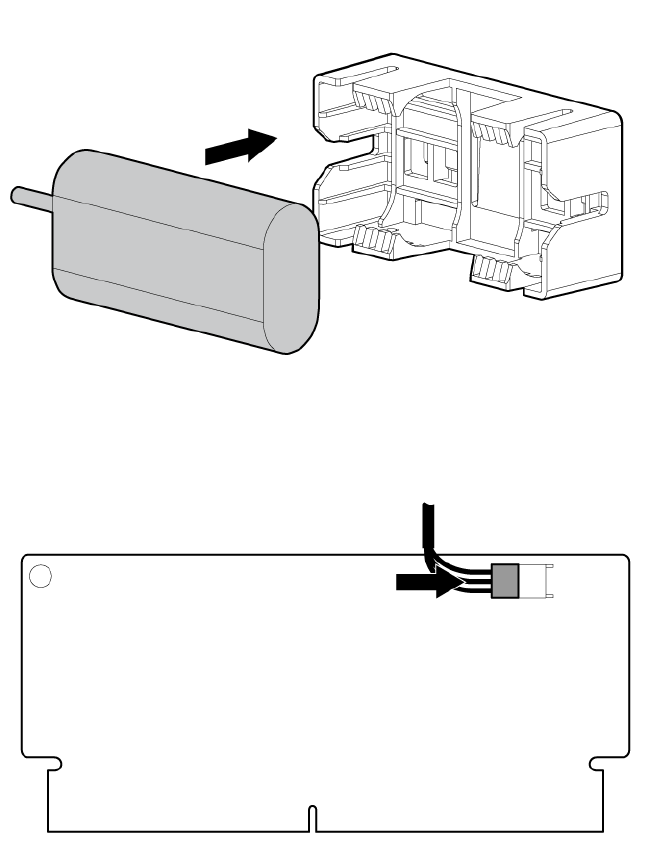

Install the FBWC capacitor pack into the holder mounted in the node.
7. Connect the FBWC cable to the cache module on the system board or to the controller card.
8. Install the PCI riser cage (on page 21).
9. Install the node into the chassis ("Installing a node into the chassis" on page 30).
10. Connect all peripheral cables to the node.
11. Power up the node ("Power up the nodes" on page 17).
HP Trusted Platform Module option
For more information about product features, specifications, options, configurations, and compatibility, see
the product QuickSpecs on the HP website (http://www.hp.com/go/qs).
Use these instructions to install and enable a TPM on a supported node. This procedure includes three
sections:
1. Installing the Trusted Platform Module board.
2. Retaining the recovery key/password (on page 57).
3. Enabling the Trusted Platform Module (on page 58).
