Hardware options installation 54
d.

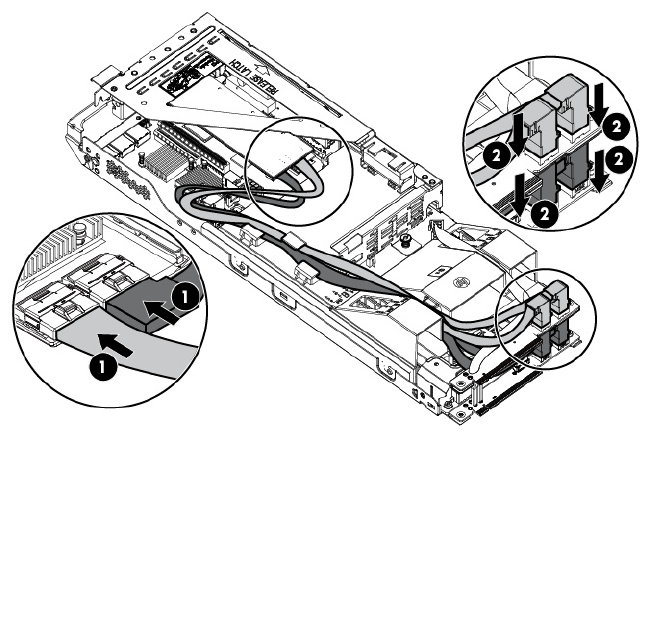

Route the straight cable through the air baffle, and then connect the two ends of the cable to the
corresponding connectors on the top adapter board.
9. Install the PCI riser cage (on page 21).
10. Install the node into the chassis ("Installing a node into the chassis" on page 30).
11. Connect all peripheral cables to the node.
12. Power up the node ("Power up the nodes" on page 17).
Controller options
The nodes include an embedded HP Smart Array B120i controller.
• For more information about product features, specifications, options, configurations, and compatibility,
see the product QuickSpecs on the HP website (http://www.hp.com/go/qs).
• For more information about the controller and features, see the HP Smart Array Controllers for HP
ProLiant Servers User Guide on the HP website
(http://www.hp.com/support/SAC_UG_ProLiantServers_en).
Installing the FBWC capacitor pack
1. Back up all data on the node.
2. Power down the node (on page 17).
3. Disconnect all peripheral cables from the node.
4. Remove the node from the chassis (on page 17).
5. Remove the PCI riser cage (on page 20).
