Hardware options installation 37
Memory options
DIMM identification

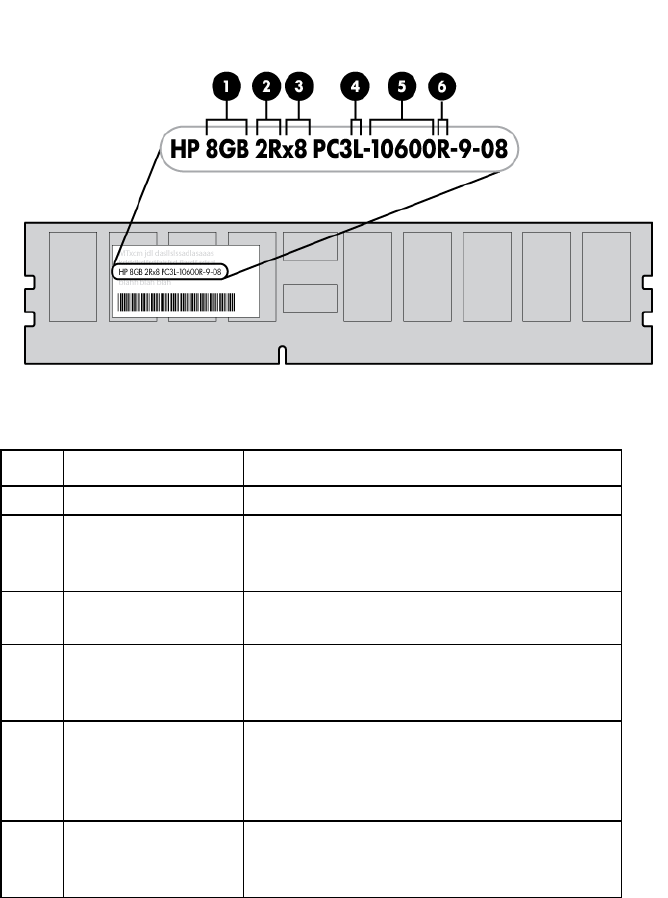

To determine DIMM characteristics, use the label attached to the DIMM and the following illustration and
table.
Item Description Definition
1
Size —
2
Rank 1R = Single-rank
2R = Dual-rank
4R = Quad-rank
3
Data width x4 = 4-bit
x8 = 8-bit
4
Voltage rating L = Low voltage (1.35v)
U = Ultra low voltage (1.25v)
Blank or omitted = Standard
5
Memory speed 14900 = 1866-MT/s
12800 = 1600-MT/s
10600 = 1333-MT/s
8500 = 1066-MT/s
6
DIMM type R = RDIMM (registered)
E = UDIMM (unbuffered with ECC)
L = LRDIMM (load reduced)
For the latest supported memory information, see the QuickSpecs on the HP website
(http://www.hp.com/go/qs). At the website, choose the geographic region, and then locate the product by
name or product category.
Single-rank and dual-rank DIMMs
DIMM configuration requirements are based on these classifications:
