Operations 26
Remove the 2U air baffle
1. Power down the node (on page 17).
2. Disconnect all peripheral cables from the node.
3. Remove the node from the chassis (on page 17).
4. Remove the PCI riser cage (on page 20).
5. Remove the 2U adapter board bracket (on page 22).
6. Disconnect and remove the Mini-SAS cable ("Remove the Mini-SAS cable" on page 23).

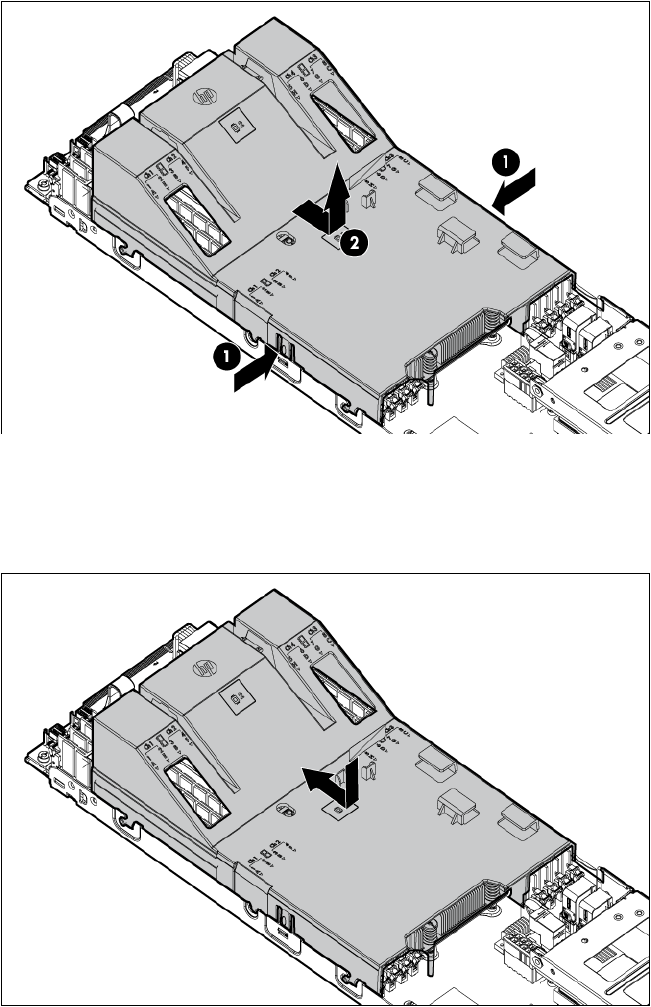

7. Remove the 2U air baffle.
Install the 2U air baffle
1. Install the air baffle.
