Operations 20
4.
Power up the node ("Power up the nodes" on page 17).
Remove the PCI riser cage
1. Power down the node (on page 17).
2. Disconnect all peripheral cables from the node.
3. Remove the node from the chassis (on page 17).

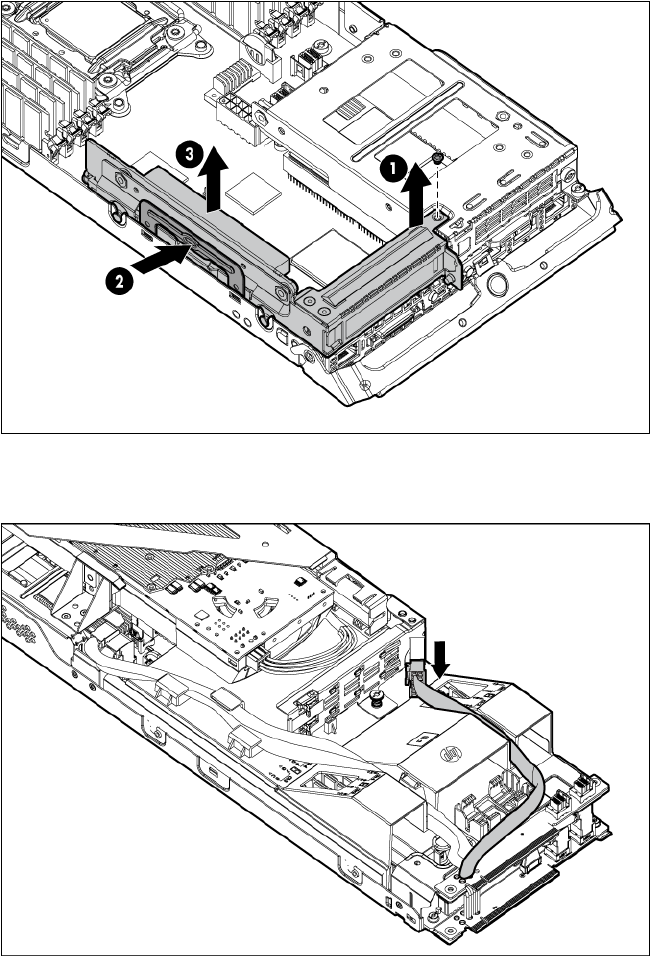

4. (1U node only) Remove the PCI riser cage:
a. Remove the screw securing the riser cage.
b. Press the PCI riser cage release latch.
c. Lift the PCI riser cage out of the node.
5. (2U node only) Remove the PCI riser cage:
a. If a GPU is installed, disconnect the 2U adapter cable from the GPU power cable.
