Operations 19
2.
Disconnect all peripheral cables from the node.
3. Remove the node from the chassis (on page 17).

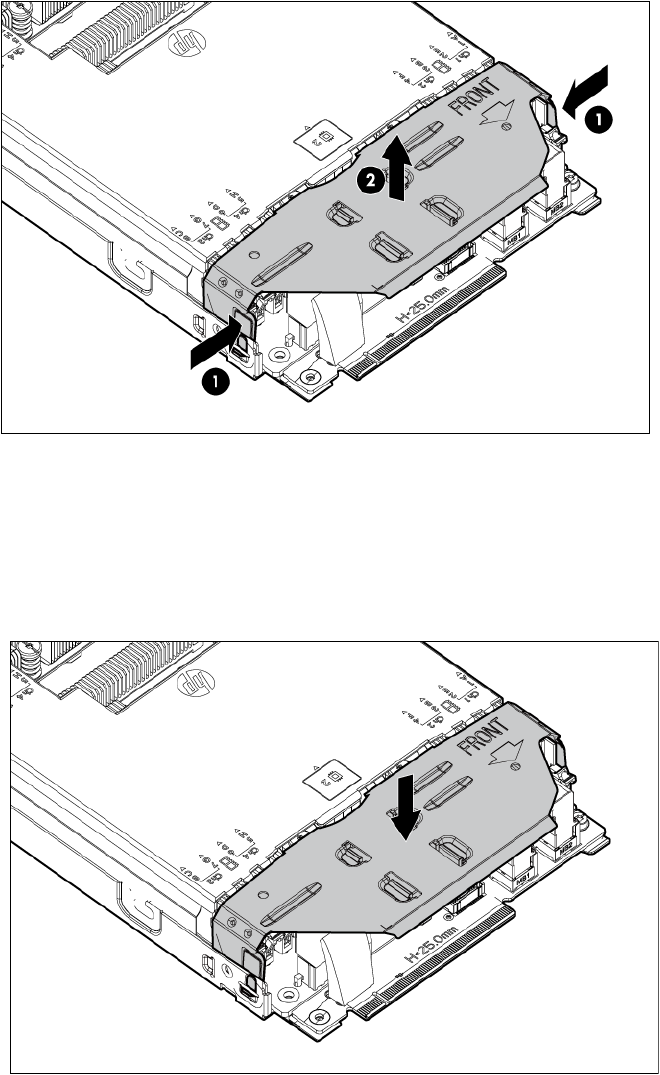

4. Remove the 1U cable guard:
a. Press the release latches on each side of the cable guard.
b. Lift the cable guard out of the node.
Install the 1U cable guard
1. Install the 1U cable guard:
a. Position the 1U cable guard.
b. Press the 1U cable guard downward into locked position.
2. Install the node into the chassis ("Installing a node into the chassis" on page 30).
3. Connect all peripheral cables to the node.
