Component identification 7
Item Description Status
2
Internal health LED Green = Normal
Flashing = Booting
Amber = Degraded condition
Red = Critical condition
3
Flex 1 LED
Green = Network linked
Green flashing = Network activity
Off = No link or activity
4
Flex 2 LED Green = Network linked
Green flashing = Network activity
Off = No link or activity
5
Hard drive activity LED Green = Activity
Off = No activity
6
System power LED Green = On
Amber = Standby (auxiliary power available)
Off = Off

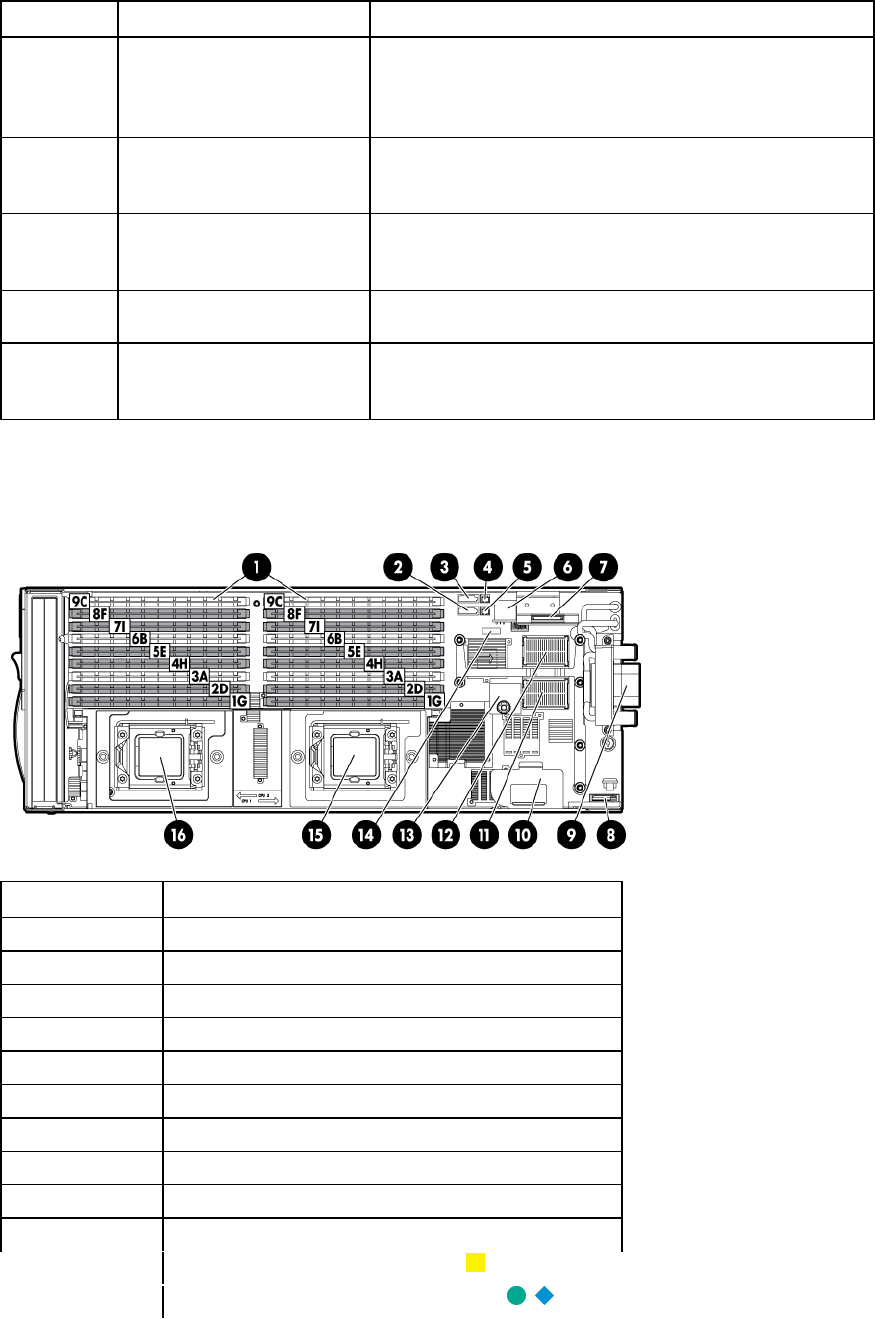

System board components
Item Description
1
DIMM slots
2
SSD data connector 2
3
SSD data connector 1
4
SSD power connector 1
5
SSD power connector 2
6
Internal USB connector
7
SD card slot
8
System battery
9
Enclosure connector
10
Battery tray
11
Mezzanine connector 1 (Type I only)
12
Mezzanine connector 2 (Type I or Type II)
