Hardware options installation 35
Mezzanine card option
Optional mezzanine cards are classified as Type I mezzanine cards and Type II mezzanine cards. The card
type determines where it can be installed in the server blade.
• Install Type I mezzanine cards on either mezzanine 1 connector or mezzanine 2 connector.
• Install Type II mezzanine cards only on mezzanine 2 connector.
Optional mezzanine cards enable network connectivity and provide Fibre Channel support. For mezzanine
card locations, see the system board components (on page 7).
For mezzanine card signal mapping, see "Interconnect bay numbering and device mapping (on page 15)."
To install the component:
1. Power down the server blade (on page 11).
2. Remove the server blade (on page 12).
3. Remove the access panel (on page 13).

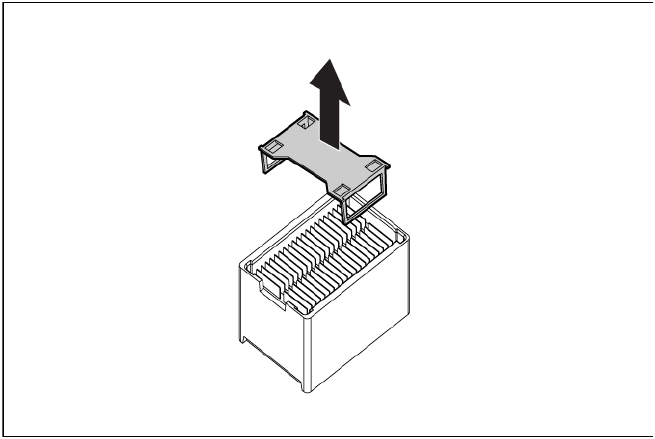

4. Remove the mezzanine connector cover.
