Hardware options installation 36
4.

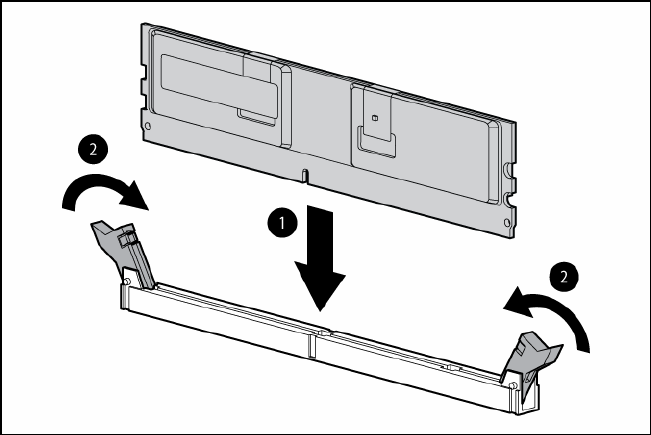

Install the FBDIMM.
5. Install the access panel (on page 16).
6. Install the server blade.
7. Power up the server blade (on page 14).
8. Use RBSU to verify the configuration ("HP ROM-Based Setup Utility" on page 48).
Mezzanine card option
Optional mezzanine cards enable network connectivity and provide Fibre Channel support. For
mezzanine card locations, see "System board components (on page 9)."
Optional mezzanine cards are classified as Type I mezzanine cards and Type II mezzanine cards. The
card type determines where it can be installed in the server blade:
• Install Type I mezzanine cards on any mezzanine connector.
• Install Type II mezzanine cards only on Mezzanine 2 connector or Mezzanine 3 connector.
To install the component:
1. Power down the server blade (on page 14).
2. Remove the server blade (on page 15).
3. Remove the access panel (on page 15).
