Component identification 12
9.
Repeat steps 5 and 6.
If both the current and backup versions of the ROM are corrupt, return the system board for a service
replacement.
To switch to the backup ROM when the System ROM is not corrupt, use RBSU.

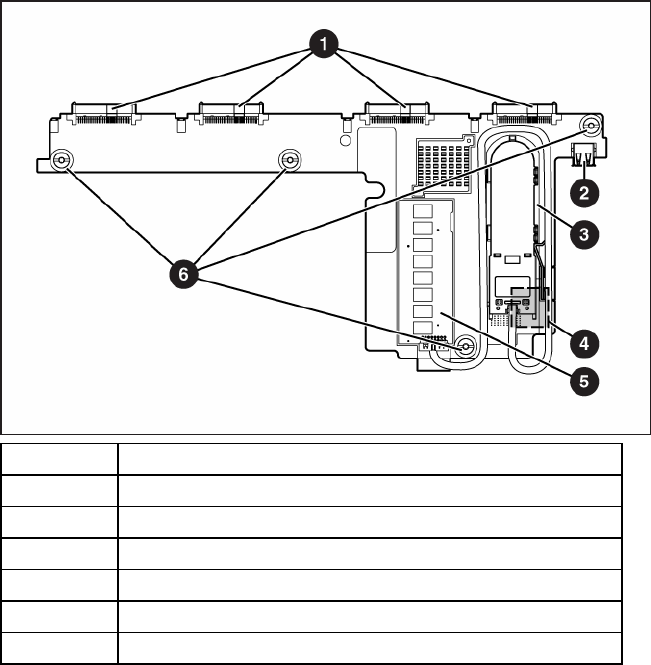

Hard drive backplane components
Item Description
1 Hard drive connectors
2 Internal USB connector
3 HP Smart Array P400i Controller battery pack (optional)
4 System board connector
5 HP Smart Array P400i Controller cache module
6 Thumbscrews
