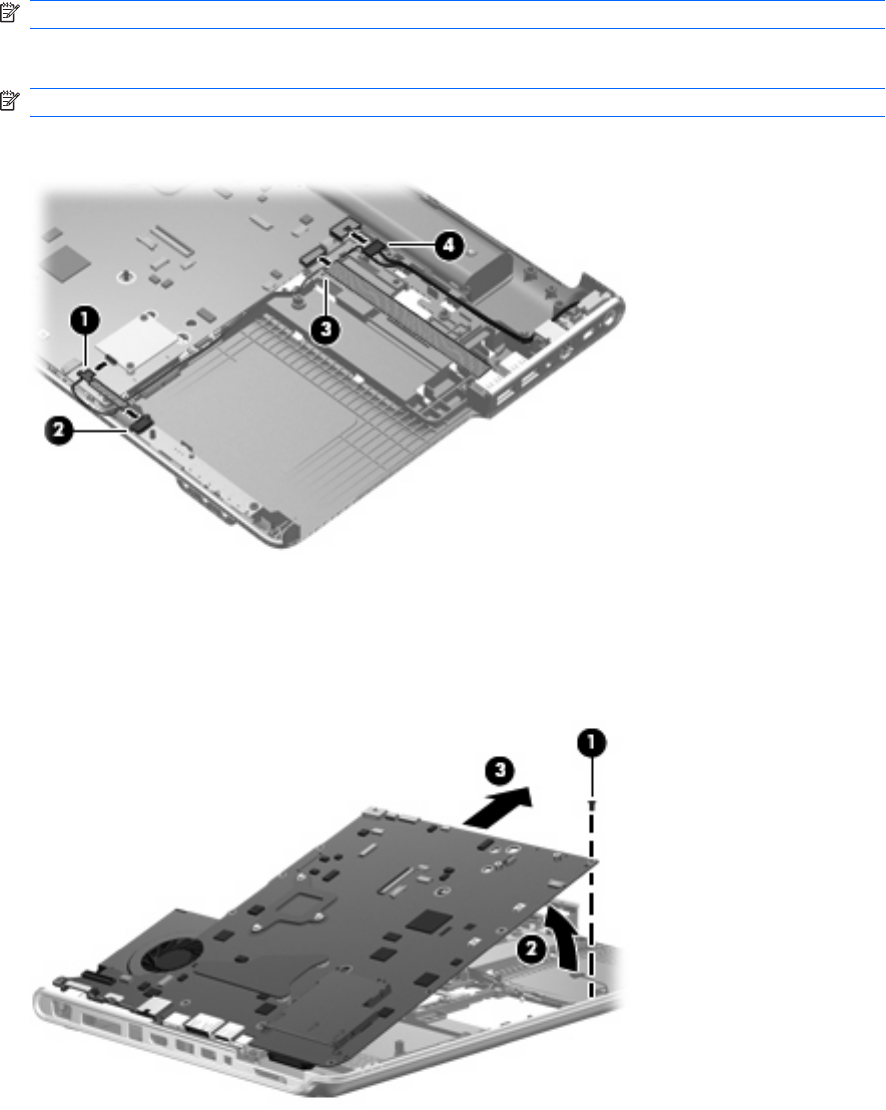

2. Disconnect the following cables from the system board:
(2) Audio/infrared board cable
NOTE: The audio/infrared board cable connects to a LIF connector on the system board.
(3) USB board cable
NOTE: The USB board cable connects to a LIF connector on the system board.
(4) Power connector cable
3. Remove the Phillips PM2.5×7.0 screw (1) that secures the system board to the base enclosure.
4. Lift the right side (2) of the system board until it rests at an angle.
5. Remove the system board (3) by sliding it up and to the right at an angle.
Reverse this procedure to install the system board.
