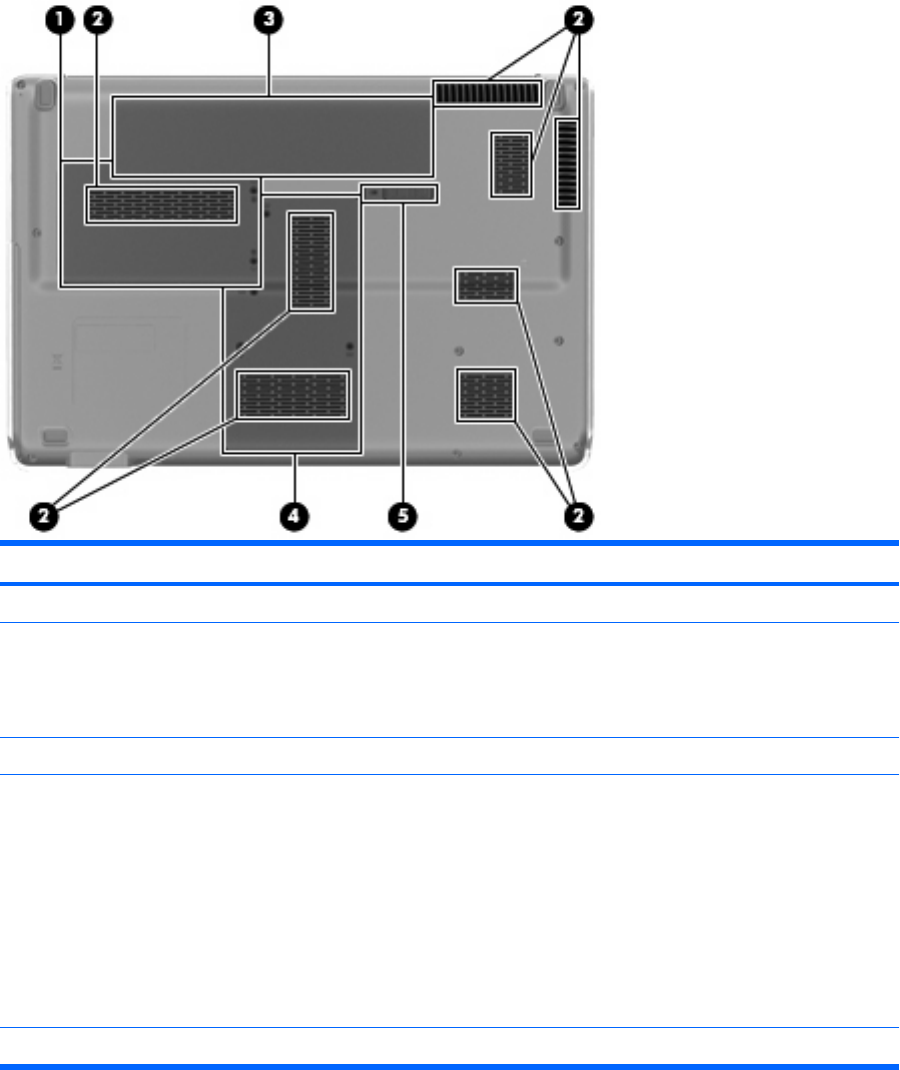

Bottom components
Component Description
(1) Hard drive bay Holds the hard drive.
(2) Vents (8) Enable airflow to cool internal components.
NOTE: The computer fan starts up automatically to cool internal
components and prevent overheating. It is normal for the internal
fan to cycle on and off during routine operation.
(3) Battery bay Holds the battery.
(4) Memory module compartment Contains the memory module slots.
Also holds the WLAN module, TV tuner card (select models only),
and the Intel® Turbo Memory card (select models only).
CAUTION: To prevent an unresponsive system, replace the
wireless module only with a wireless module authorized for use in
the computer by the governmental agency that regulates wireless
devices in your country or region. If you replace the module and
then receive a warning message, remove the module to restore
computer functionality, and then contact technical support through
Help and Support.
(5) Battery release latch Releases the battery from the battery bay.
Bottom components 15
