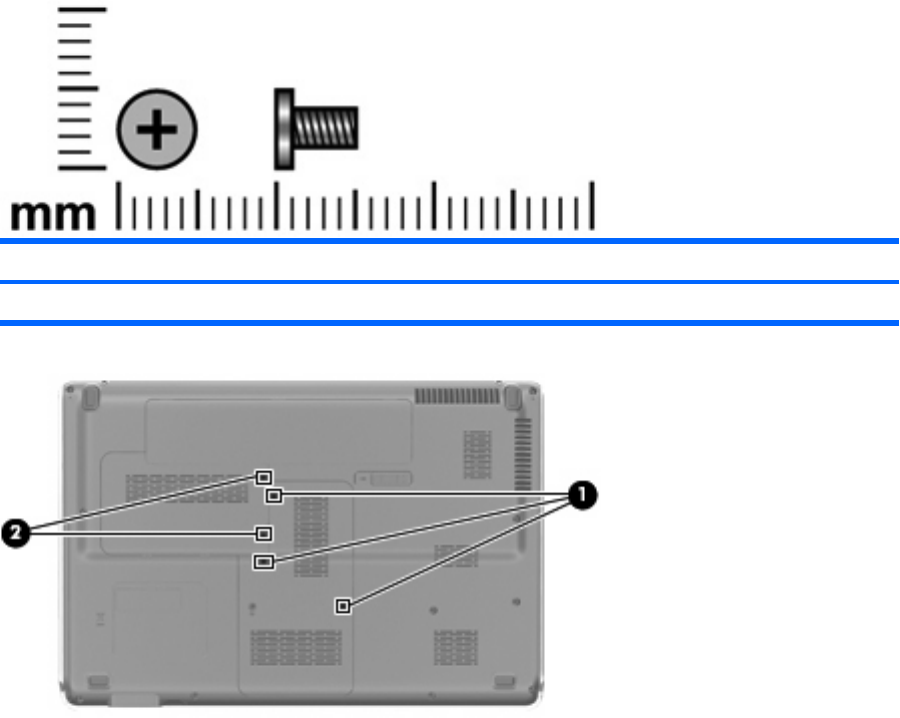

Phillips PM2.5×5.5 captive screw
Color Quantity Length Thread Head diameter
Black 5 5.5 mm 2.5 mm 4.4 mm
Where used:
(1) 3 captive screws that secure the memory module compartment cover to the computer (screws are
secured by C-clips)
(2) 2 captive screws that secure the hard drive cover to the computer (screws are secured by C-clips)
130 Chapter 7 Screw listing
