• Serial Number—The HP module serial number.
• Part Number—The HP module part number.
• Spare Part Number—The HP module spare part number.
Onboard Administrator
The Onboard Administrator table contains:
• Bay—The location of the Onboard Administrator (OA).
• Status—The current status of the OA.
• Active—Whether the module is currently in active or standby status.
• Name—The HP product name of the OA module.
• Firmware—The HP OA firmware version number.
• Serial Number—The HP OA serial number.
• Part Number—The HP OA part number.
• Spare Part Number—The HP spare part number for the OA.
Enclosure Syslog
The Enclosure Syslog table contains, for each log entry:
• Time—The local date and time of the entry.
• Subsystem—The subsystem that produced the message.
• Message—The description of the event.
Networking tab
To view a diagram of the Virtual Connect network topology for a selected host, click the Networking
tab. The Networking tab displays a diagram of the network topology from RHEV-defined networks,
through physical NIC ports and Virtual Connect, to uplinked external switches.

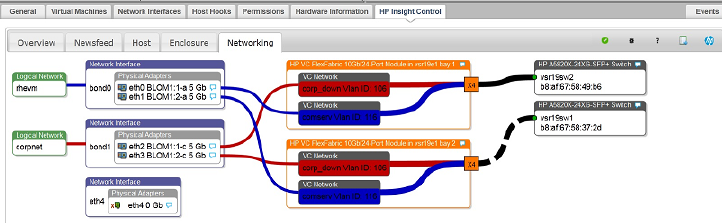

Figure 5 HP Insight Control for RHEV Networking configuration display
The network configuration data contains:
• Logical networks—Networks defined in the RHEV manager.
• Host network interfaces (Linux NICs)—These include the Linux names for the interface (bonds),
the Linux names for the adapters (ethxx) and the HP names for the physical adapters
(BLOMx:y-z).
• Virtual Connect (VC) modules and the virtual connect networks as defined by those modules.
• Uplinked external switches.
