SNA Node and Link Configuration
Configuring the SNA Node and Link
Data Required from the NS Configurations
Certain items from the X.25 System Access configuration and the DTC
Manager configuration or the DTS configuration must match or be
compatible with items in the SNA/X.25 configuration. Listed below are
the X.25 System Access configuration screens and DTC Manager
configuration or DTS configuration screens that contain those items.
For an SNA/X.25 PVC:
“DTC Manager DTCX25 Board # Level 3” screen or “DTS DTC X.25
Card Config — Level 3 &Miscellaneous” screen: The PVC LCI Range
must include the PVC number specified for PVC Number on the “SNA
Node Configuration: X.25 Link Data” screen.
“Network Interface Configuration” screen: The Configured
Network Interfaces list must include the NI name specified for NS
Network Interface Name on the “SNA Node Configuration: X.25
Link Data” screen.
“X.25 PVC Address Key Paths” screen: If you want to reserve an
X.25 address key for the SNA/X.25 PVC’s use only, the PVC Number
must match the PVC Number specified on the “SNA Node
Configuration: X.25 Link Data” screen.

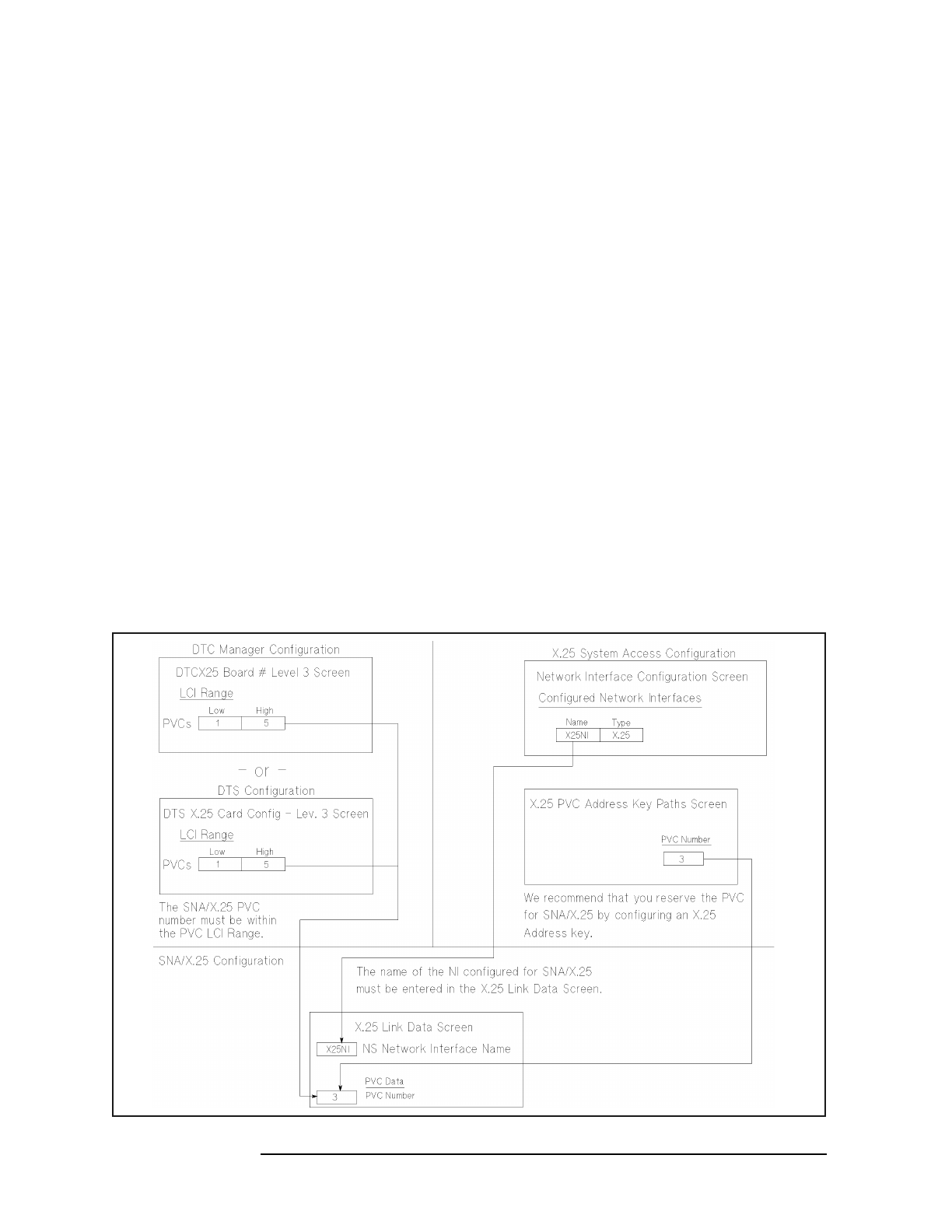

Figure 2-7 shows the configuration dependencies for an SNA/X.25 PVC.
Figure 2-7 PVC Configuration Dependencies
