SNA Node and Link Configuration
Configuring the SNA Node and Link
PU Data Screen
After you have selected a node, NMMGR displays the “SNA Node
Configuration: PU Data” screen, as shown in Figure 2-4. (You can go
directly to this screen from any screen by typing @SNANODE.
nodename
in
the command window and pressing
[ENTER].) Here you enter
information that identifies the PU to the host. If you are configuring a
new node, you must enter all of the information.

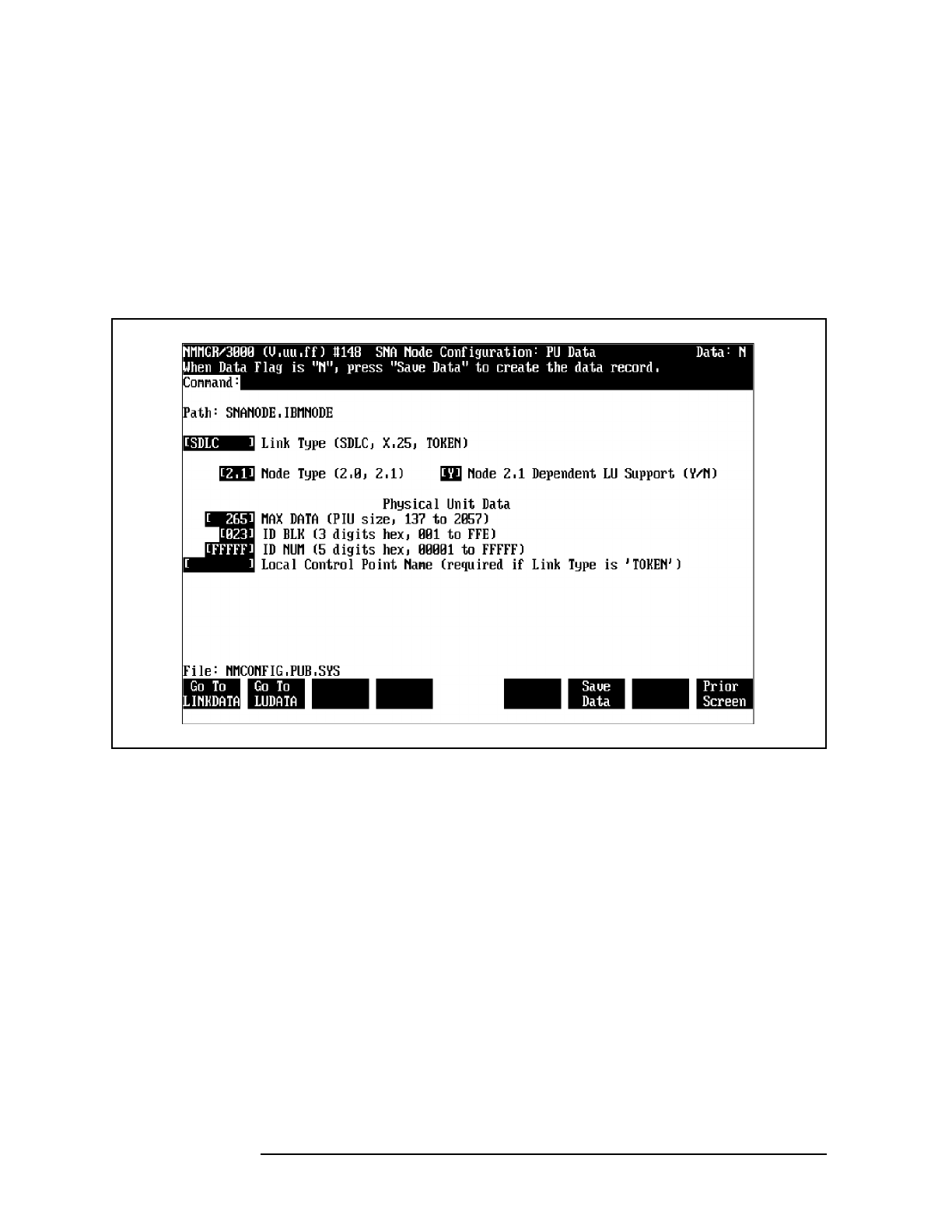

Figure 2-4 PU Data Screen Example
Fields
Path
For display only. The NMMGR path to this screen. It
includes the name of the SNA node you are configuring.
Link Type
Required. The type of communications link the node is
being configured for.
Values: SDLC, X.25, or TOKEN.
Default: SDLC
Node Type
Required. The type of node being configured. If you
are configuring a T2.0 node, enter 2.0. If you are
configuring a T2.1 node, enter 2.1.
