SNA Links Overview
SNA/X.25 Link Overview
SNA/X.25 Link Overview
SNA/X.25 Link is composed of only software:
• SNA Transport
• Qualified Logical Link Control (QLLC) module
SNA/X.25 Link communicates with the X.25 network through the X.25
System Access software on the HP 3000, which is supported by a
Datacommunications and Terminal Controller (DTC). The QLLC
module enforces the QLLC protocol, which is a special protocol
developed by IBM to resolve differences between SDLC and X.25. It
uses qualified X.25 packets to send link control messages in a format
similar to SDLC link control messages.
Figure 1-3 shows how SNA/X.25 Link, the SNA services, and the
required NS products implement HP 3000-to-IBM host communication.

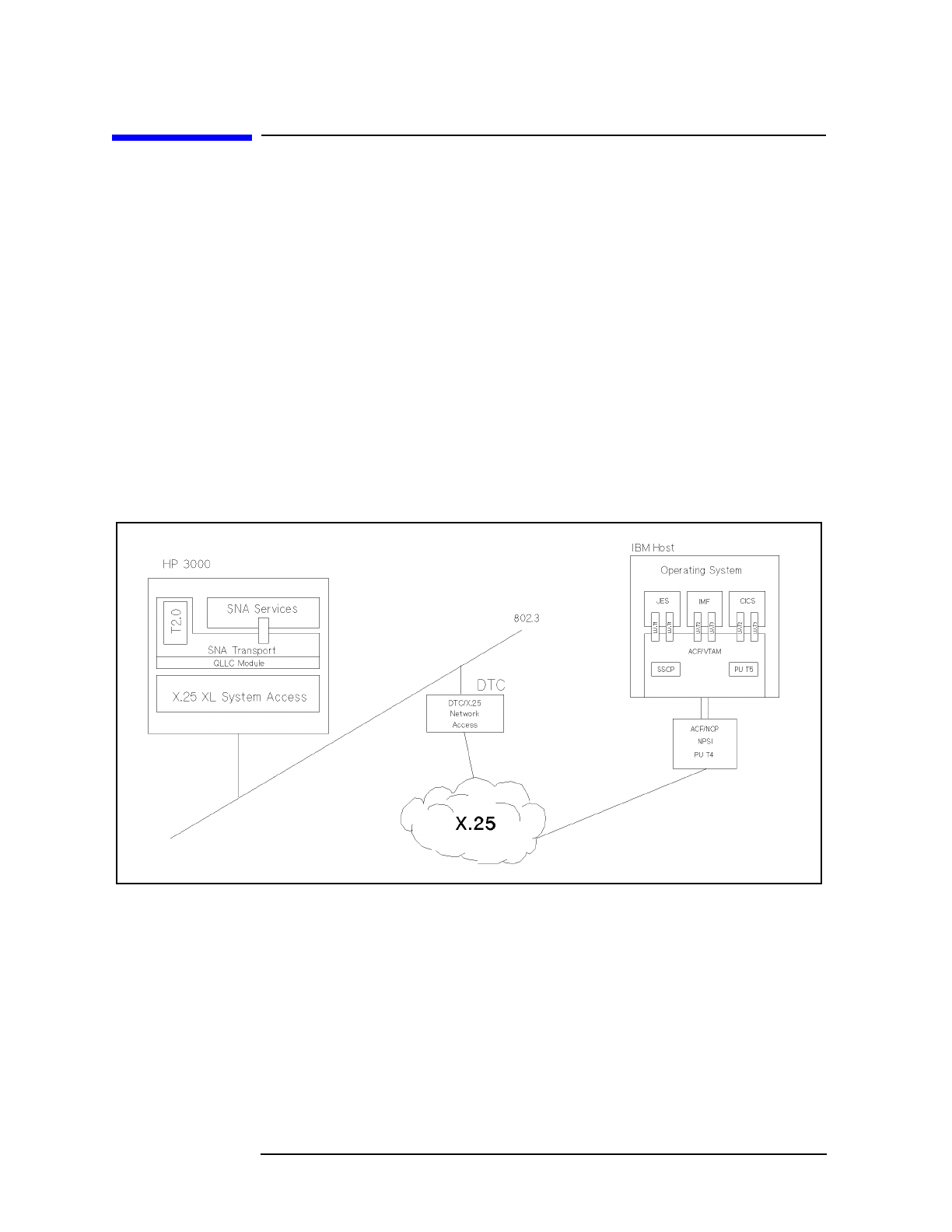

Figure 1-3 SNA/X.25 Link HP-to-IBM Host Communication
Figure 1-4 shows how SNA/X.25 Link, the SNA services, and the
required NS products implement HP 3000-to-IBM AS/400
communication.
