Chapter 1 19
SNA Links Overview
SNA/SDLC Link Overview
SNA/SDLC Link Overview
SNA/SDLC Link is composed of hardware and software:
• Programmable Serial Interface (PSI) card and cables (hardware)
• SNA Transport (software)
• SDLC link driver (software)
The hardware of SNA/SDLC Link (the PSI and cables) and the
downloaded SNA Transport software implement the Physical Control
layer of SNA, and the SDLC link driver implements the Data Link
Control layer. The SDLC link driver controls transmission over the
communications line.
Figure 1-1 shows how SNA/SDLC Link and the SNA services
implement HP 3000-to-IBM host communication.

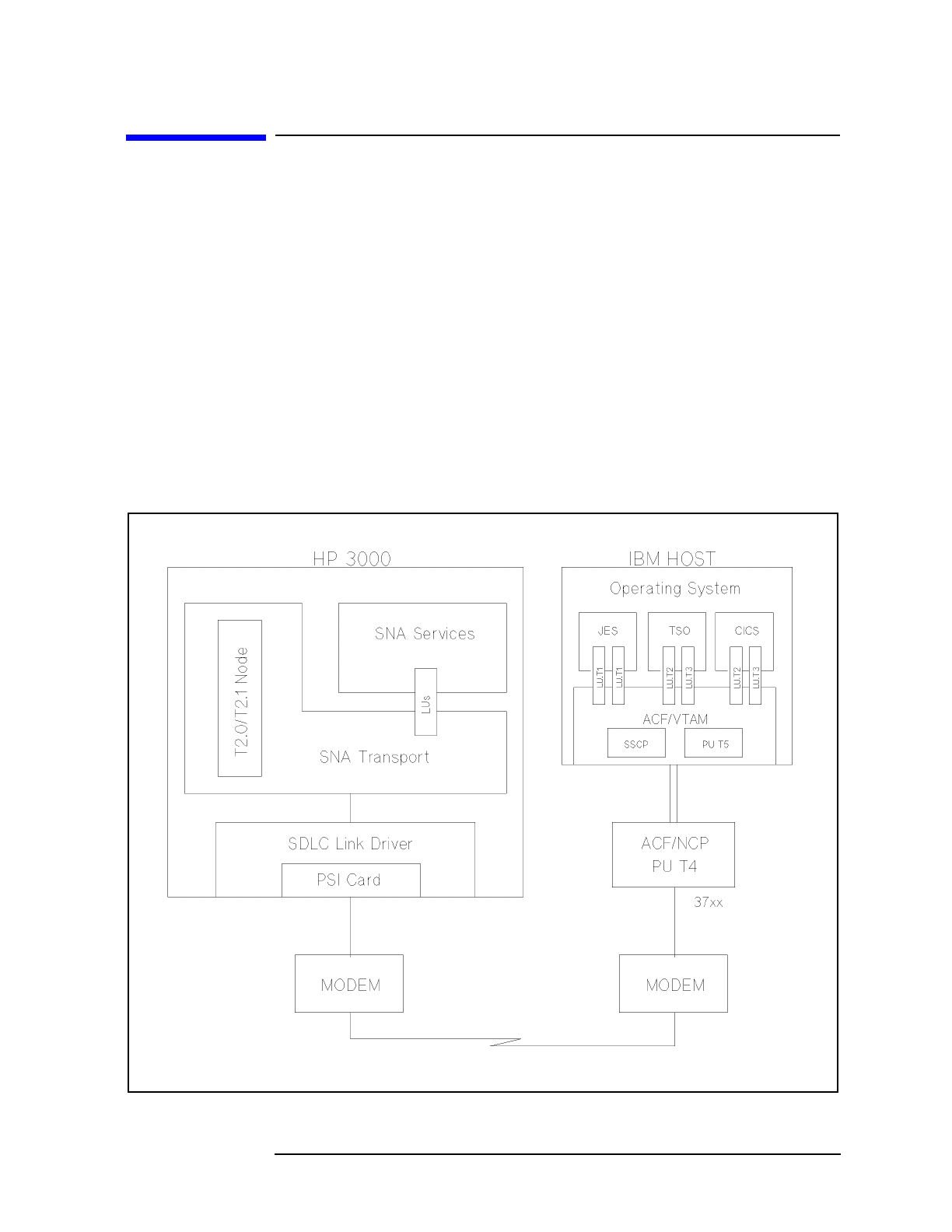

Figure 1-1 SNA/SDLC Link HP-to-IBM Host Communication
