SNA Node and Link Configuration
Configuring the SNA Node and Link
SDLC Link Data Screen
Once you have specified the PU and LU information, you are ready to
configure the communications link parameters and the phone data for
the SDLC link. You do this on the “SNA Node Configuration: SDLC
Link Data” screen as shown in Figure 2-6. Select this screen by
pressing
[f1] (Go To LINKDATA) on the “SNA Node Configuration: PU
Data” screen. (You can go directly to this screen from any screen by
typing @SNANODE.
nodename
.LINKDATA in the command window and
pressing
[ENTER]).

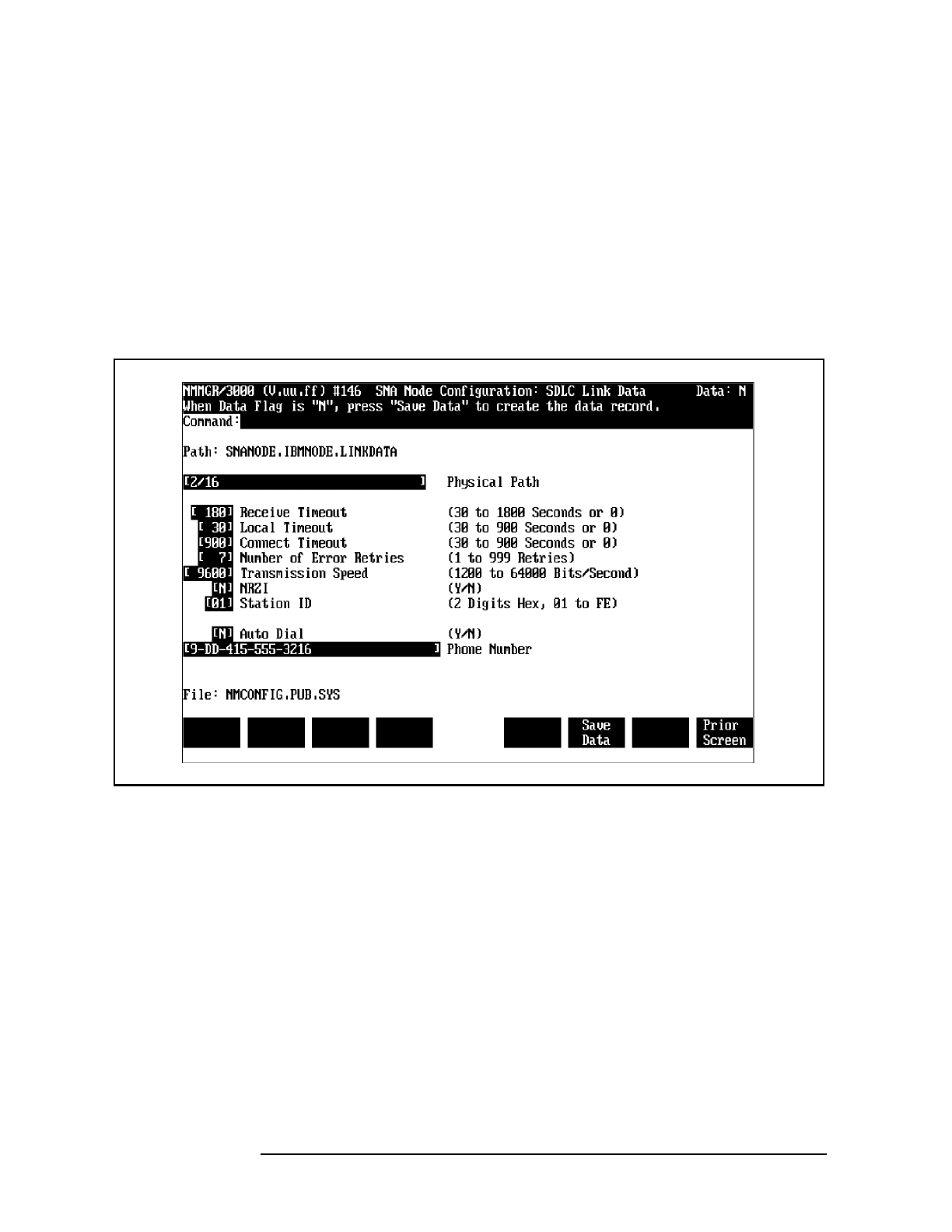

Figure 2-6 SDLC Link Data Screen Example
Fields
Path
For display only. The NMMGR path to this screen. It
includes the name of the SNA node you are configuring.
Physical Path
Required. The address of the PSI. At system start-up
time, this address is assigned according to the slot the
PSI is in. The value you enter here is determined by
one of these formulas:
If only one card cage is present:
