SNA Link/iX Node Managers Guide (30291-90009)

Chapter 2 69
SNA Node and Link Configuration
Configuring the SNA Node and Link

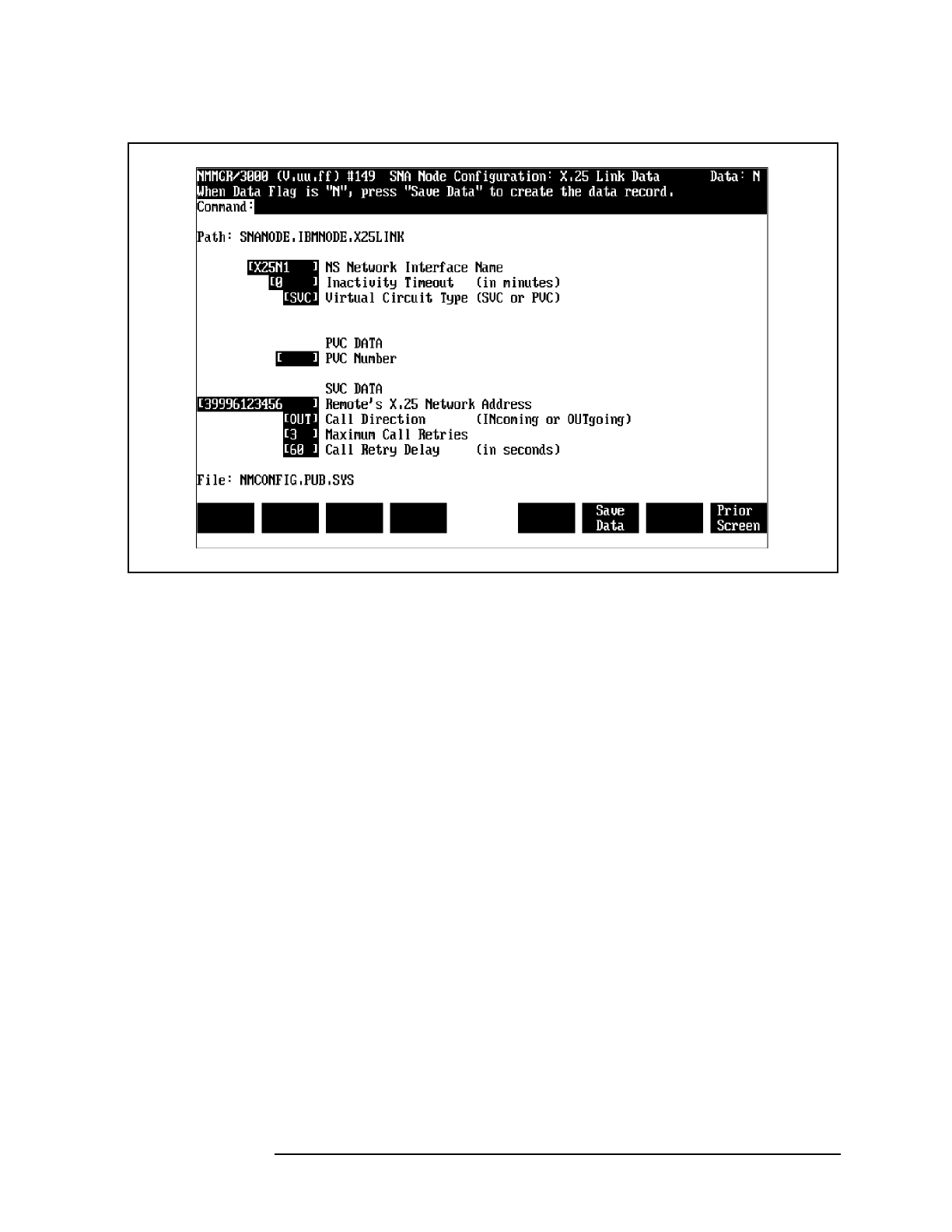

Figure 2-9 X.25 Link Data Screen Example
Fields
Path
For display only. The NMMGR pat to this screen. It
includes the name of the SNA node you are configuring.
NS Network Interface Name
Required. The NS network interface that the X.25 link
will use. The name can be up to eight alphanumeric
characters long; the first character must be alphabetic.
See the appropriate NS documentation for more
information.
X.25 System Access Configuration: An NI name in the
Configured Network Interfaces field of the
“Network Interface Configuration” screen must match
this field.
Inactivity Timeout
Required. The number of minutes that the QLLC
module will wait between incoming packets. The timer
is reset each time a packet is received. If the specified
number of minutes elapses before the next packet
arrives, the virtual circuit is cleared and then released.
For an incoming SVC, this results in a recoverable link
failure. If 0 is specified, the timer is disabled. This can
