Removal and Replacement Procedures
HP StorageWorks Modular Smart Array 500 System Maintenance and Service Guide 2-7

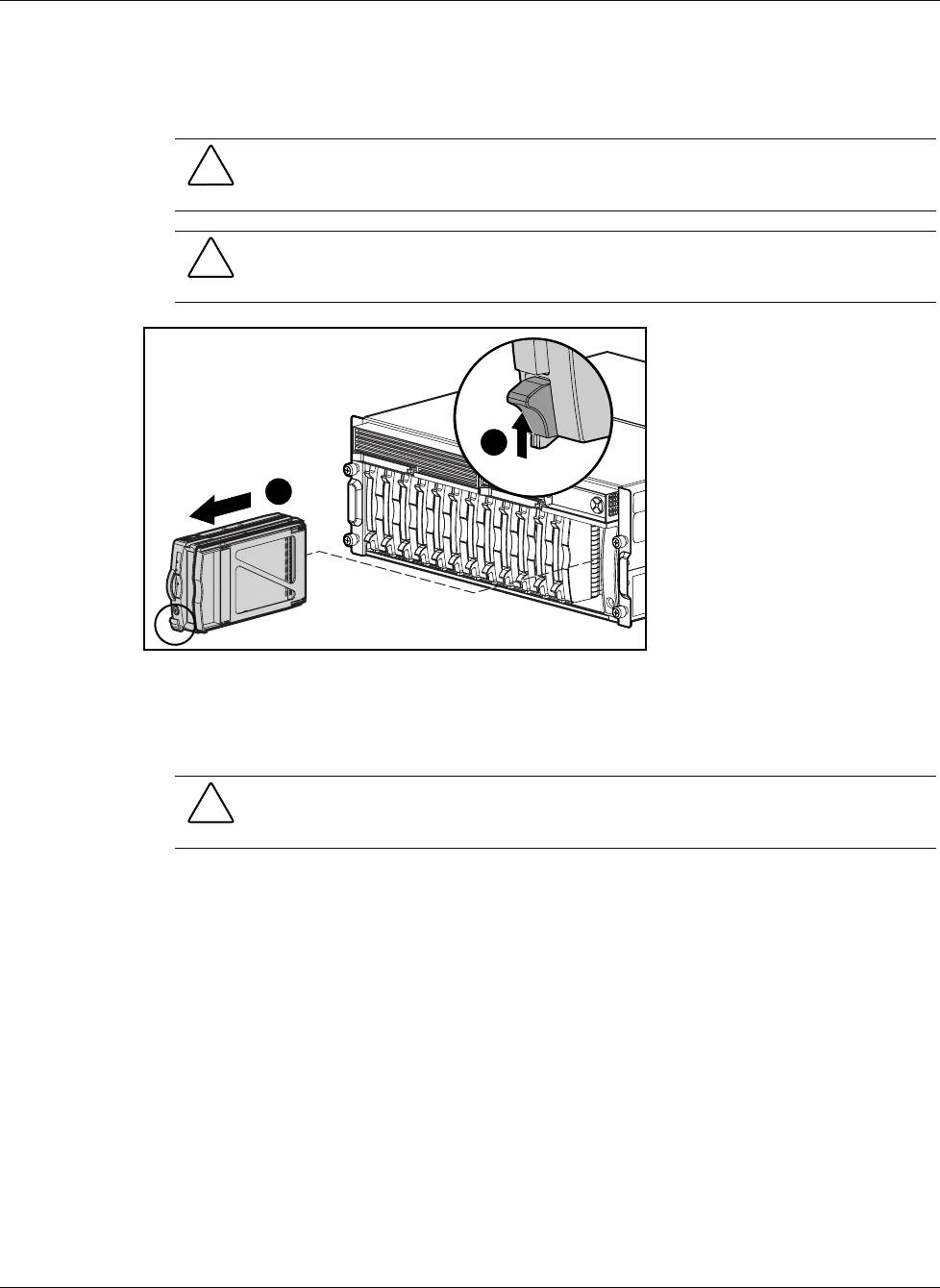

Universal Hot-Plug Tape Drive
To remove the component:
CAUTION: To prevent improper cooling and thermal damage, do not operate the system
unless all bays are populated with either a component or a blank.
CAUTION: Installation of the tape drive height converter is permanent. Attempting to
remove the converter after installation voids the tape drive warranty.
1
2
To replace the Universal Hot-Plug Tape drive:
1. Install a new tape drive height converter on the replacement tape drive.
2. Slide the tape drive into the bay until it locks into place.
CAUTION: Data loss can occur if the drive is not firmly seated.
