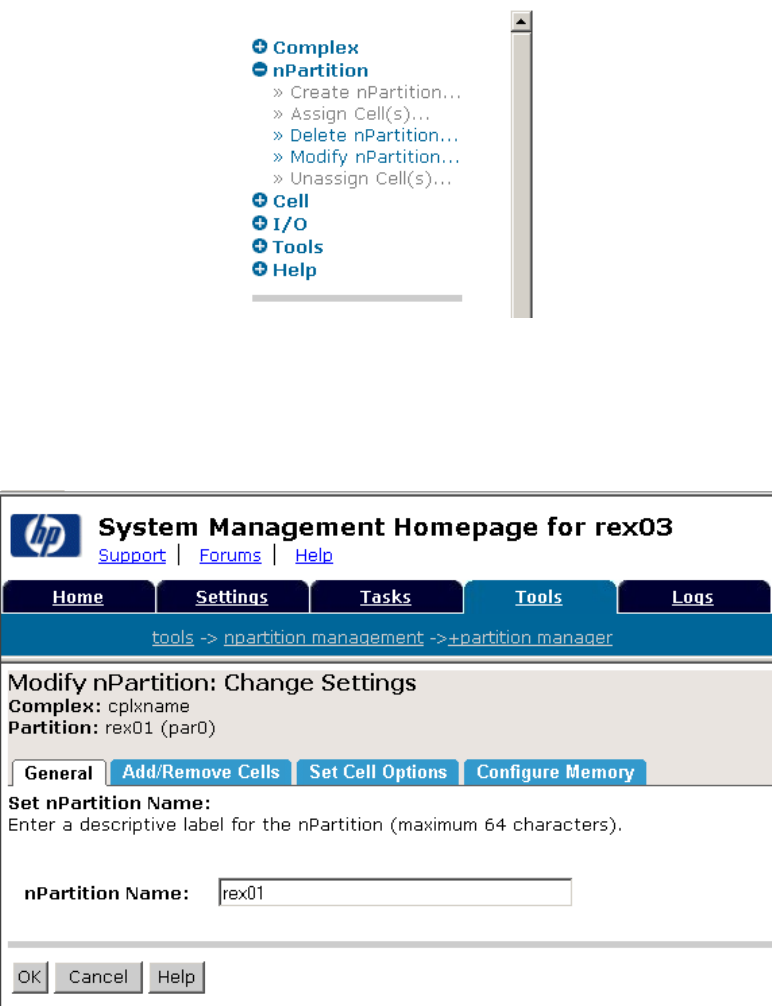

Figure 3-2 Actions menu (nPartitions submenu expanded)
To perform an action, select the submenu item. This often brings up additional tabs or screens
that require further input or narrowing of scope. For example, selecting Modify nPartition brings
up additional tabs (see Figure 3-3).
Figure 3-3 Actions menu (nPartition > Modify nPartition, General tab)
The General tab is the default here. Use it to name or rename the selected nPartition. Clicking
the Add/Remove Cells tab lets you add cells to the selected nPartition or remove cells from it
(see Figure 3-4).
Using the Actions Menu 39
