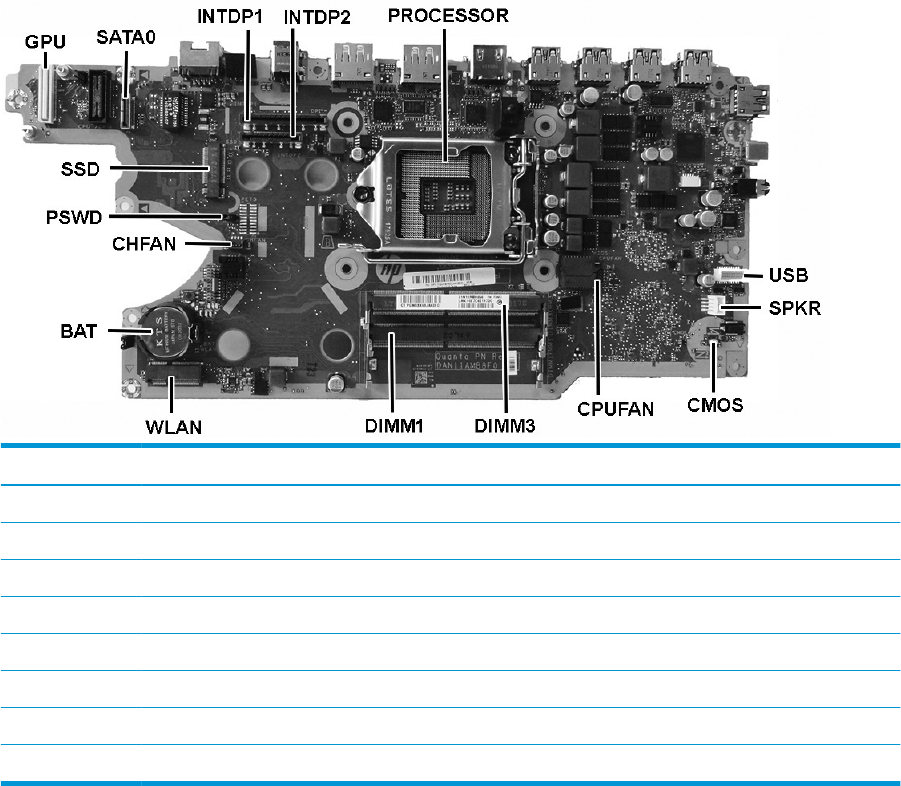

System board callouts
Sys Bd Label Color Component Sys Bd Label Color Component
GPU White Graphics card CPUFAN White Fan connector
SATA0 Black Hard drive DIMM3 Black Memory module
INTDP1 Black Display connector DIMM1 Black Memory module
INTDP2 Black Display connector WLAN Black WLAN module
PROCESSOR Black Processor socket BAT Black RTC battery
USB White Front cover CHFAN Black Fan connector
SPKR Yellow Reset CMOS PSWD Black Clear system passwords
CMOS Black Speaker SSD Black M.2 SSD drive
