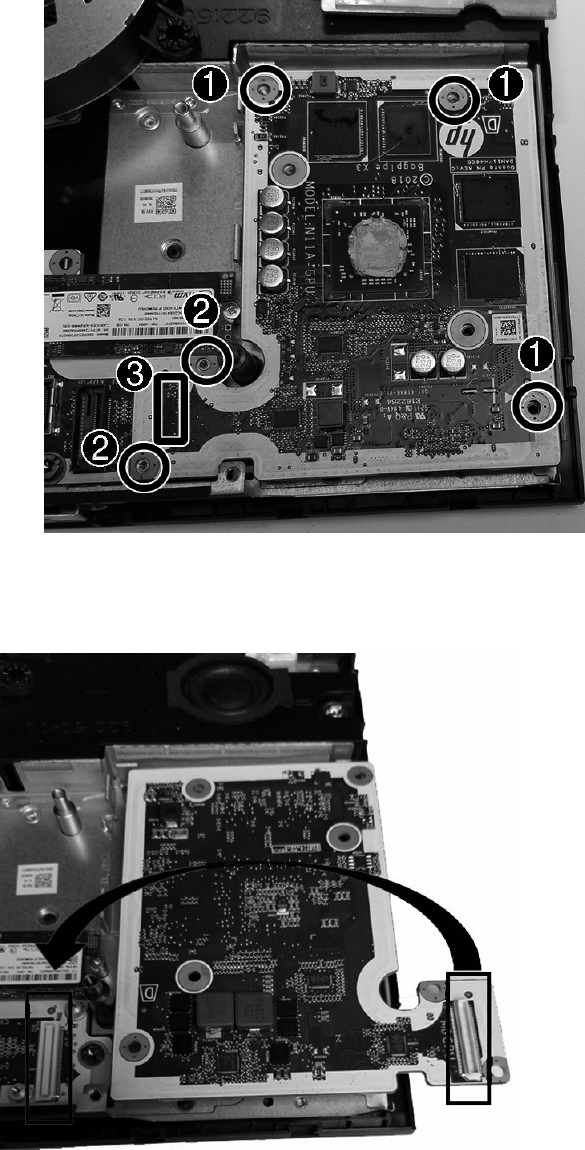

6. Lift the left side of the graphics card to disengage the connector underneath from the system board (3),
and then remove the graphics card from the computer.
To install the graphics card, reverse the removal procedures.
When installing a graphics card, note the connector on the bottom of the card must be mated to the system
board.
