Speakers
The speakers are located at the bottom of the computer. Two separate speakers are each secured by two Torx
screws.

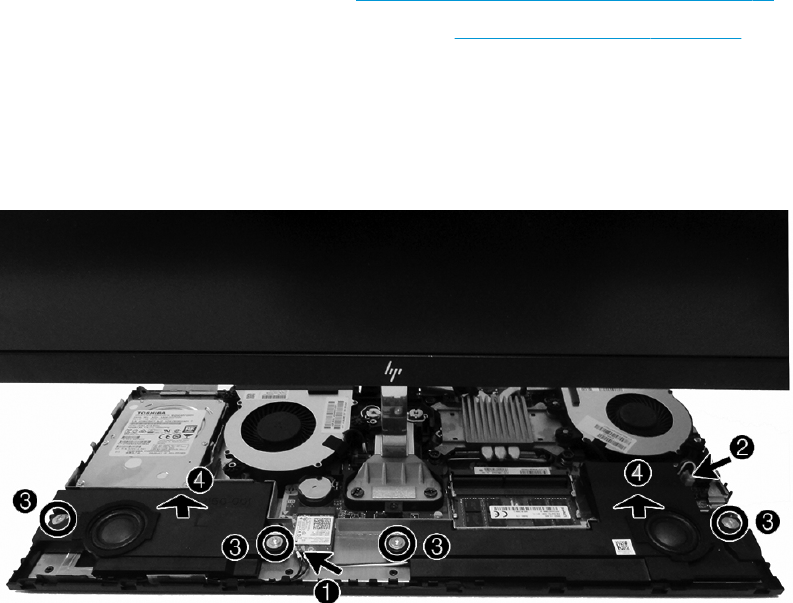

To remove the speakers:
1. Prepare the computer for disassembly (see Preparing to disassemble the computer on page 16).
2. Remove the base unit rear and front access panels (see Base unit access covers on page 17).
3. Disconnect the antenna cables from the WLAN module (1).
4. Disconnect the speaker cable from the system board (2).
5. Remove two Torx screws (3) that secure each speaker to the computer.
6. Remove the speakers from the computer (4).
To install the speakers, reverse the removal procedures.
