Display head rear panel
To remove the display head rear panel:
1. Prepare the computer for disassembly (see Preparing to disassemble the computer on page 16).

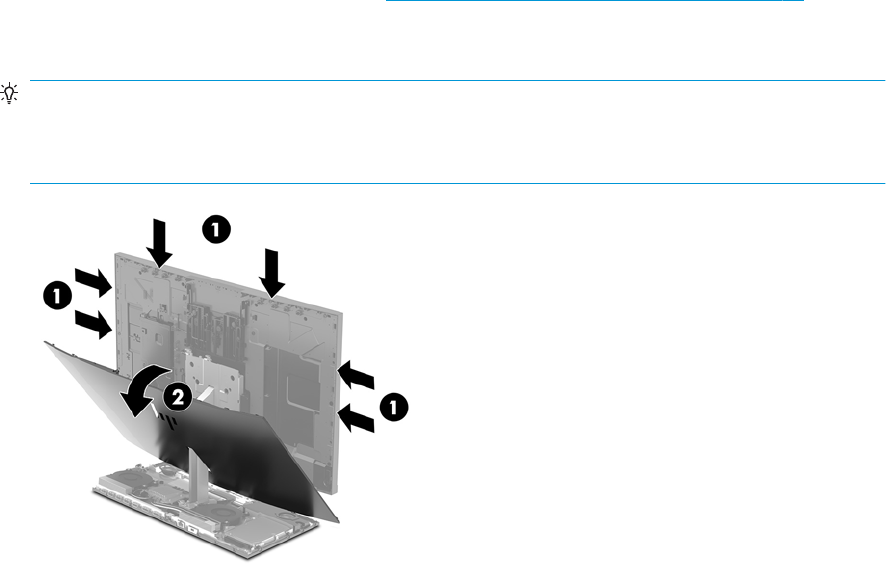

2. Grasp the top of the rear panel on the display head at the webcam slot and pull the panel o the display
head at the connection points (1), and then slide the rear cover down the neck of the stand (2).
TIP: If you cannot remove the display head rear panel because it does not t over the stand (varies by
display size), use a thin tool to remove the plastic cover on the rear of the stand neck, then remove the
display head rear panel. Note that you cannot completely remove the display head rear panel – it
remains connected to the stand after the rear panel is removed from the display panel.
To replace the display head rear panel, reverse the removal procedures.
30 Chapter 4 Removal and replacement procedures
