Solid-state drive (M.2)
For a list of available solid-state drives, see Illustrated parts catalog on page 5.
To locate the M.2 SSD on the system board, see Internal components on page 21.
1. Prepare the computer for disassembly (see Preparing to disassemble the computer on page 16).
2. Remove the base unit rear and front access panels (see Base unit access covers on page 17).
3. Move the left fan aside (see Fans on page 27). You do not have to disconnect the fan to remove the solid-
state drive.

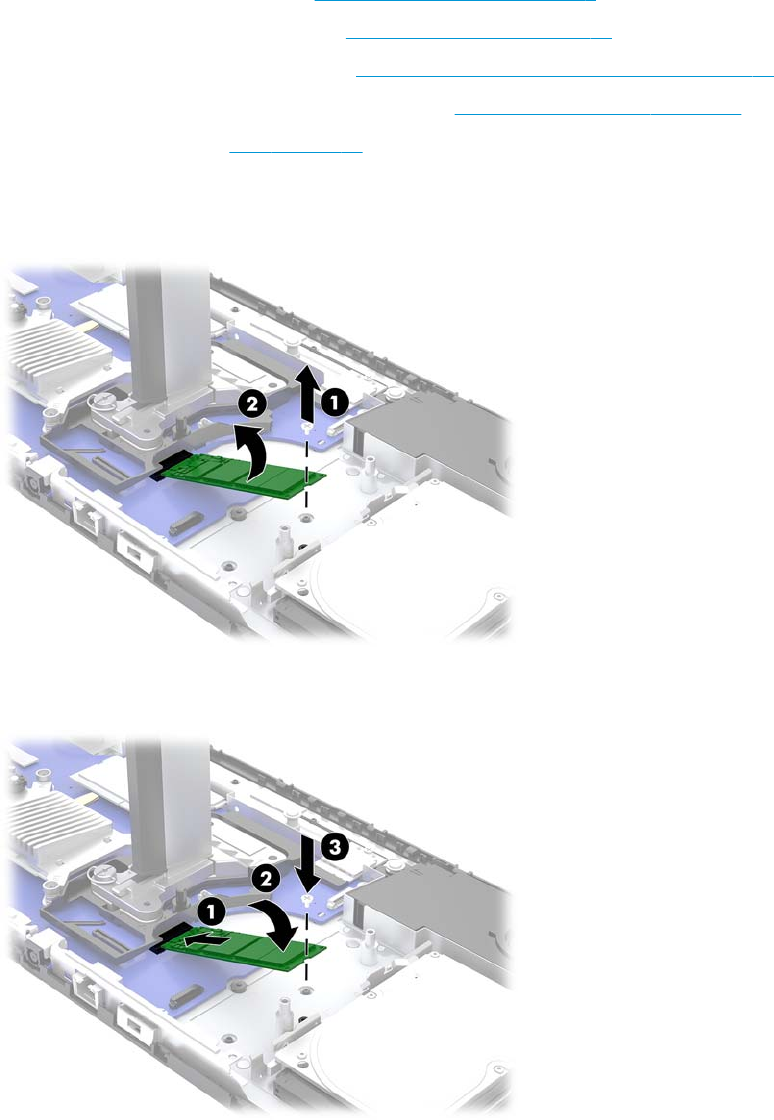

4. To remove an M.2 SSD, remove the screw that secures the SSD to the system board (1), and then slide
the SSD out of the system board connector (2).
5. To install an M.2 SSD, slide the connector end of the SSD into the system board connector (1), press the
other end of the SSD down (2), and then secure the SSD to the system board with the screw (3).
Solid-state drive (M.2) 29
