Fans

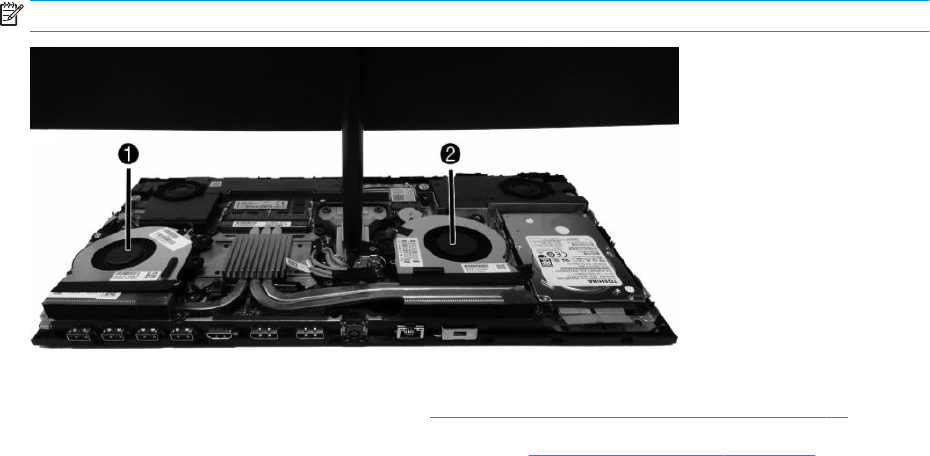

There are two fans in the computer:
(1): Right fan
(2): Left fan
NOTE: The following illustration is shown from the back of the computer.
To remove the fans:
1. Prepare the computer for disassembly (see Preparing to disassemble the computer on page 16).
2. Remove the base unit rear and front access panels (see Base unit access covers on page 17).
Fans 27
