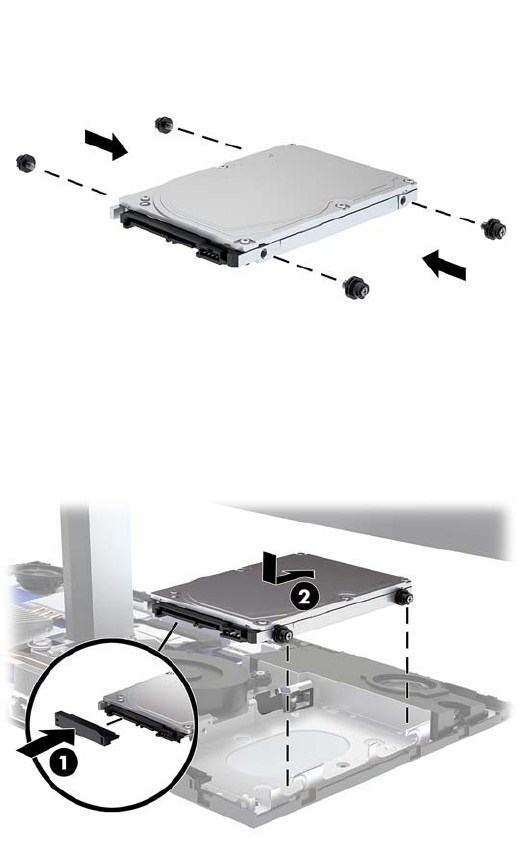

7. Install the four mounting screws that were removed from the old drive in the sides of the new hard drive.
8. Connect the cable to the rear of the hard drive (1). Then align the mounting screws on the drive with the
J-slots on the sides of the drive bay and press the drive into the drive bay. And then slide the drive
forward until it locks in place (2).
26 Chapter 4 Removal and replacement procedures
