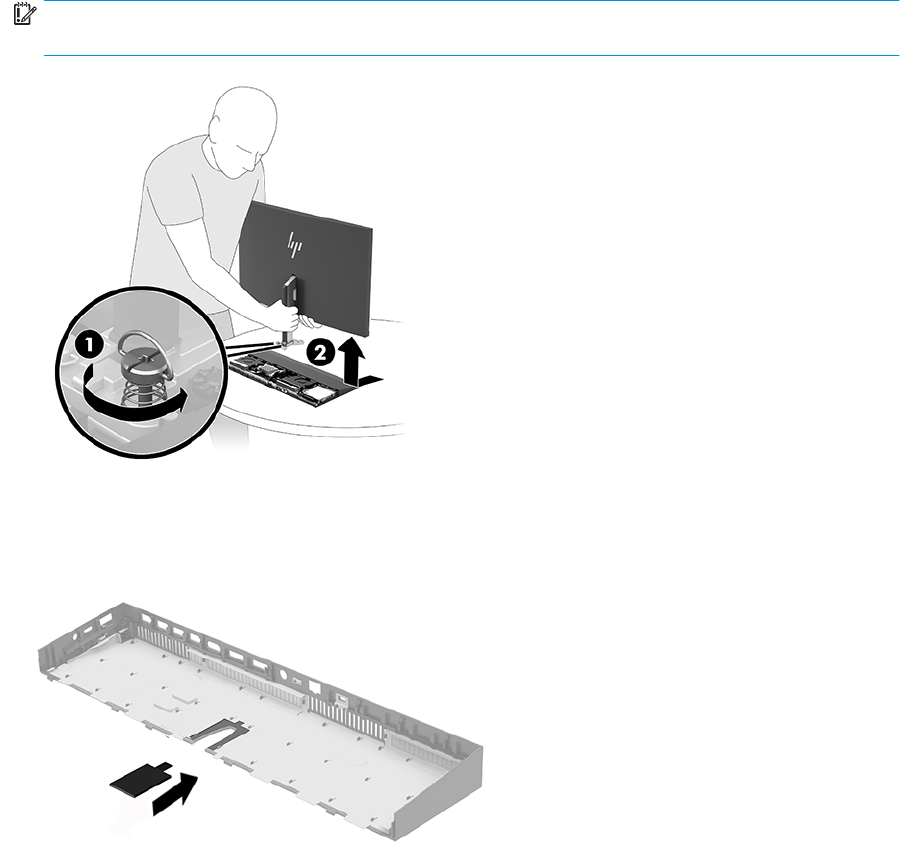

4. As shown in the following illustration, loosen the two captive screws at the base of the display head’s
neck (1). While holding onto the bottom of the display head from the front with one hand, slide the
display head back with your other hand to clear it from the small metal retention tab, and then lift the
display o the base (2).
IMPORTANT: The display head is heavy. Make sure you are holding the display head rmly when
removing it to prevent the display head from falling over and being damaged.
To replace the display head, reverse the removal procedures.
If you remove the display head and use the computer as a stand-alone base, insert the plastic plug into the
slot of the rear access cover.
