Base unit access covers
The base unit access covers must be removed to access internal computer components.
1. Prepare the computer for disassembly (see Preparing to disassemble the computer on page 16).

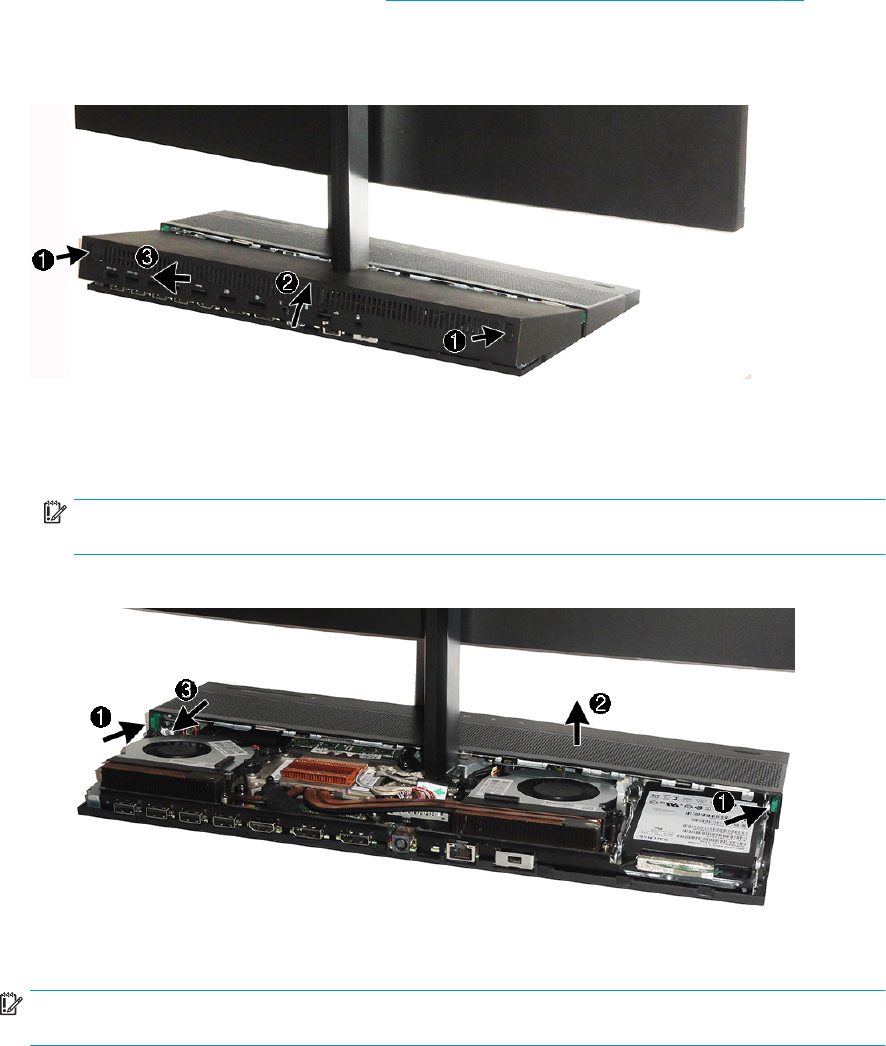

2. To remove the rear access cover, press the two release buttons on the rear of the base unit (1), and at
the same time rotate the rear of the cover up (2). Then slide the cover back to remove it from the base
(3).
3. To remove the front access cover after removing the rear access cover:
a. Press the two release buttons on the rear of the front cover (1) and lift the cover straight up (2) to
remove it.
IMPORTANT: Be careful not to accidentally disconnect the cable that connects the cover to the
system board when lifting the cover.
b. Disconnect the cable from the system board (3).
4. To replace the front access cover, press the cover straight down onto the base unit so that the cover
snaps in place.
IMPORTANT: Be sure to press this cover straight down. To avoid damaging components on the
underside of the cover, do not slide access cover into place.
