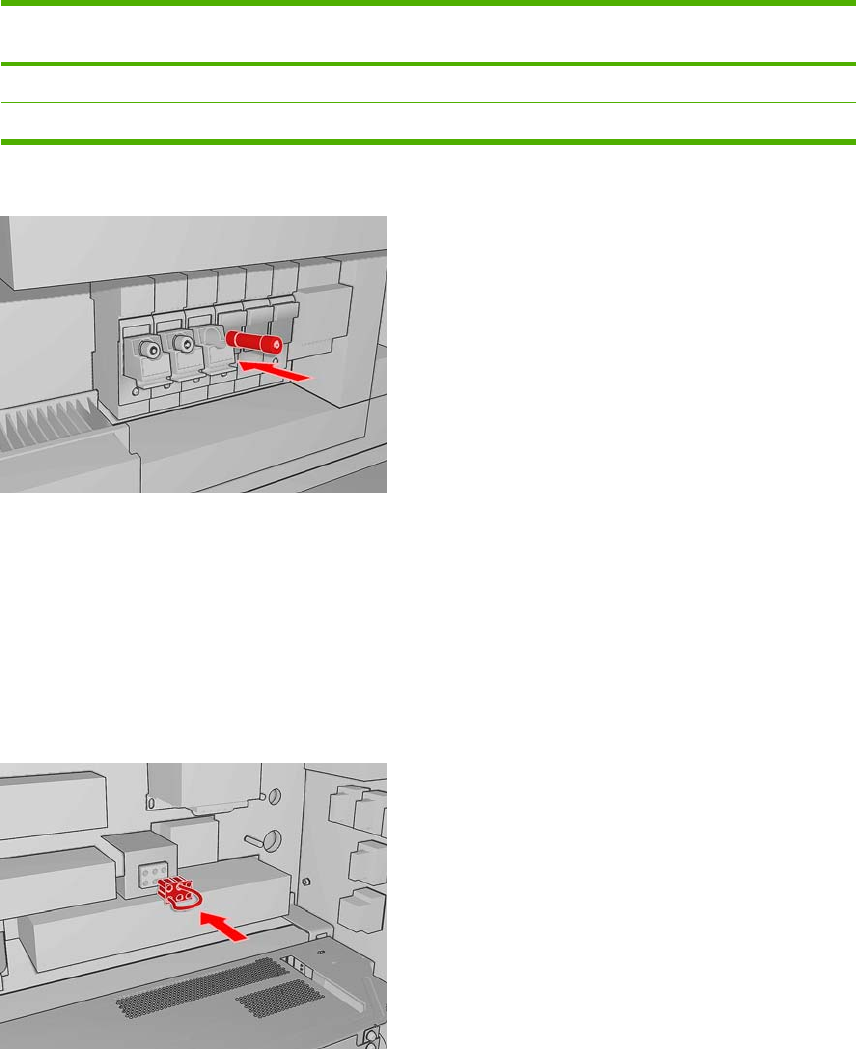

Install the fuses
1. Use the key to access the electrical cabinet.
2. Open the two fuse holder blocks.
3. Insert the six fuses (three per fuse block) into the fuse holder with the piston facing you.
Printer Sites with high voltage supply (200–
290V)
Sites with low voltage supply (100–
120)
HP Designjet L65500/LX600 20 A 32 A
HP Designjet LX800 25 A 40 A
1
Japan may have input frequencies of 50 Hz or 60 Hz
4. Close the fuse holder until you feel and hear a “click.” The red square above the fuse holder should
change color once all fuse holders have been inserted.
Install the power jumpers
1. There are five power jumpers supplied. Select the appropriate power jumper according to the
single-phase power at the installation site. Inserting the wrong power jumper will cause the vacuum
pump to work incorrectly.
2. Insert the correct power jumper into the connector, located close to the transformer.
