6 Configure the electrical system
Install the fuses and power jumper
Manpower Time
1 person 5 minutes
NOTE: The electrical system inside the printer must be configured by the service engineer during
installation.
CAUTION: If there are any doubts regarding the proper installation of the fuse or power jumper,
consult the certified electrician that knows the voltage of the electrical installation.
TIP: The electrical cabinet key is located in a plastic bag secured to the top of the electrical cabinet.
Open the sliding door to find it.

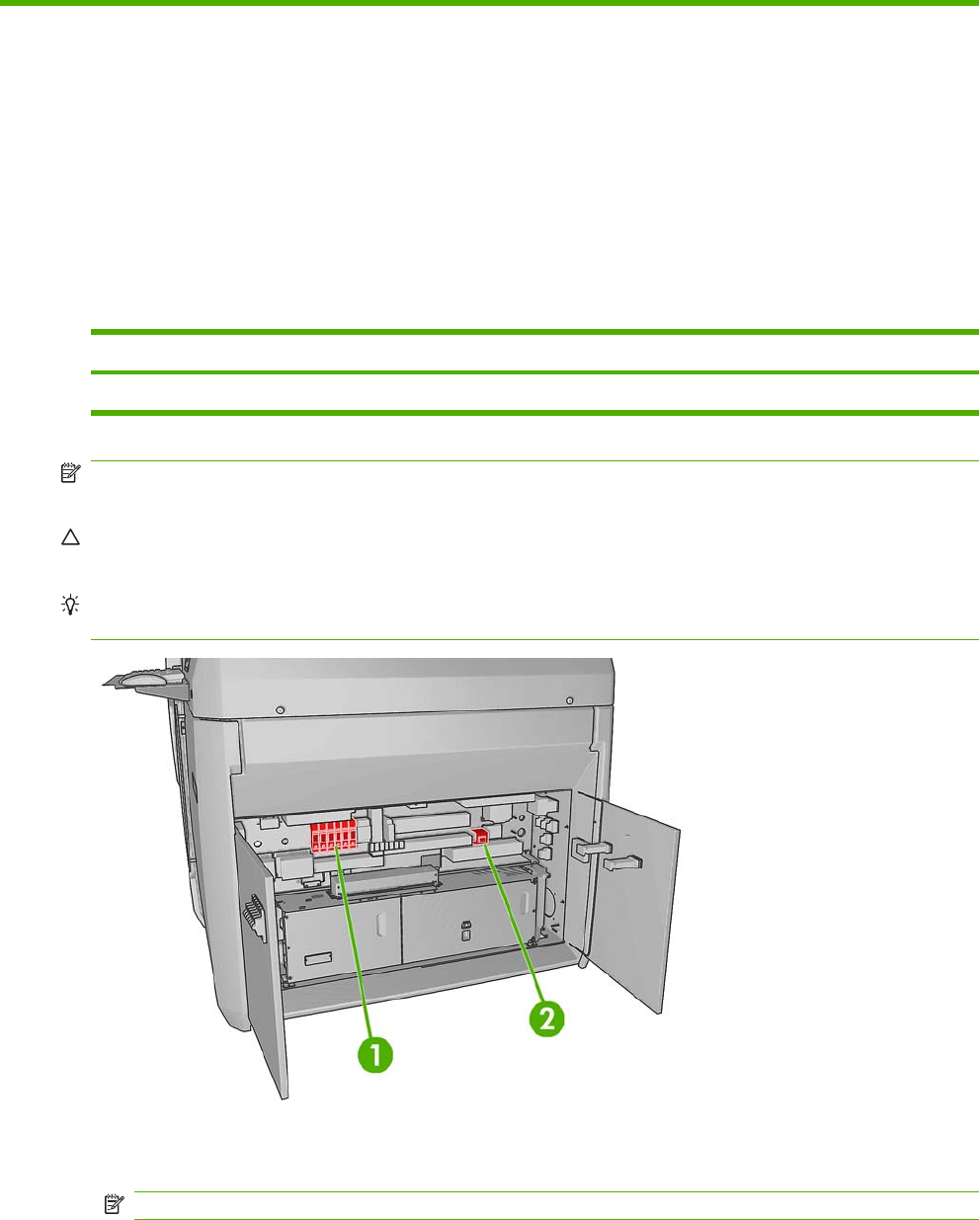

1. Power fuse holder blocks
2. Vacuum transformer
NOTE: The Vacuum transformer is located in the purging kit box.
ENWW Install the fuses and power jumper 27
