Protective Earth conductors (grounding)
The printer must be connected to a good quality, dedicated ground line in order to avoid electrical risk.
Please note your obligation to comply with the Electrical Code requirements of the local jurisdiction of
the country where the equipment is installed.
Protective Earth attachment
▲
The ground wires coming from the tri-phase power cord and from the single-phase power cord
must be fitted with round terminals suitable for attaching into M6 pillar terminal. Reliable screw
attachment must be used. They are close to Protective Earth (PE) terminal marking which are

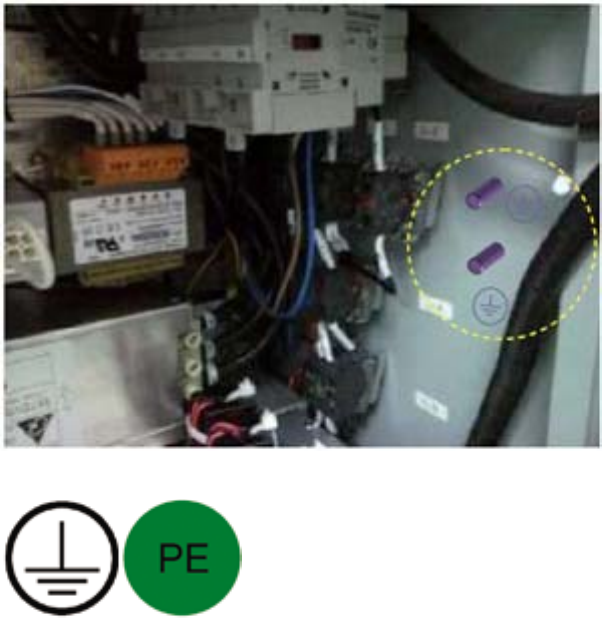

located in the Cabinet on the right as shown on the picture below.
Protective Earth (PE) terminal markings:
26 Chapter 5 Connect the power cables ENWW
