Tri-phase Power Cord attachment
1. The Tri-phase AC power cord must be attached to the back of the Main Switch.

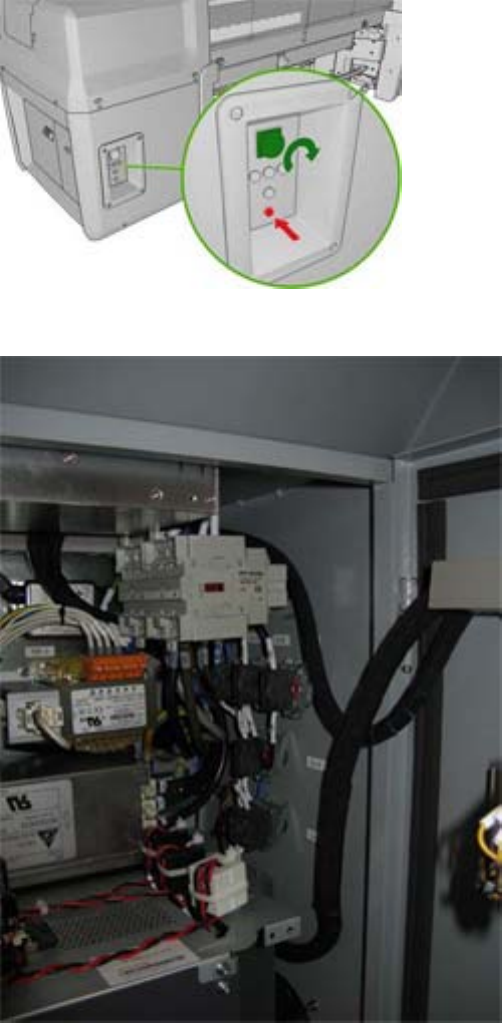

2. Back of the Main Switch is shown below:
This Main Switch is made by two blocks of identical size, each one having three contacts. The left
block is dedicated to tri-phase lines, so the three contacts are used. The block on the right side is
dedicated to single-phase lines, so only two contacts form the total of three are used.
24 Chapter 5 Connect the power cables ENWW
