Installation manual
Table Of Contents
- Safety precautions
- Introduction
- Receive the shipment
- Set up the printer in the final position
- Connect the power cables
- Configure the electrical system
- Purge the ink system
- Prepare the printer
- Prepare for printing
- Prepare the HP Internal Print Server (Japan and Russia only)
- Manually configure the printer’s IP address
- Change the Windows Vista language

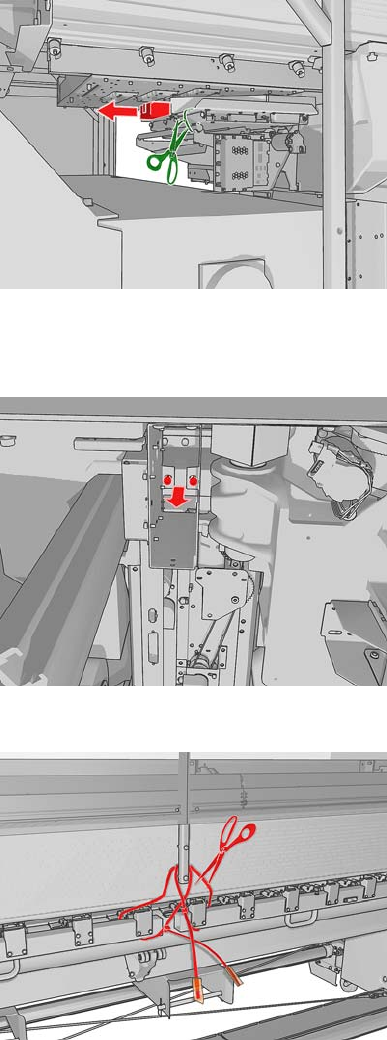

5. Remove the tie and 2 foam pieces that secure the service station.
6. Remove the four foam pieces that secure the top cover.
7. Remove the two T20 screws securing the printhead cleaning assembly.
8. Remove the substrate pressure handle straps (pinches).
9. Remove the plastic ties securing the diverter.
ENWW Remove additional packaging 19
