C Controlling multiple products
Use this method to connect several products to a single computer. You can control several products
at a time by connecting them to a single computer.
In the Option menu, Set ID must be between 1 and 255 without being duplicated.

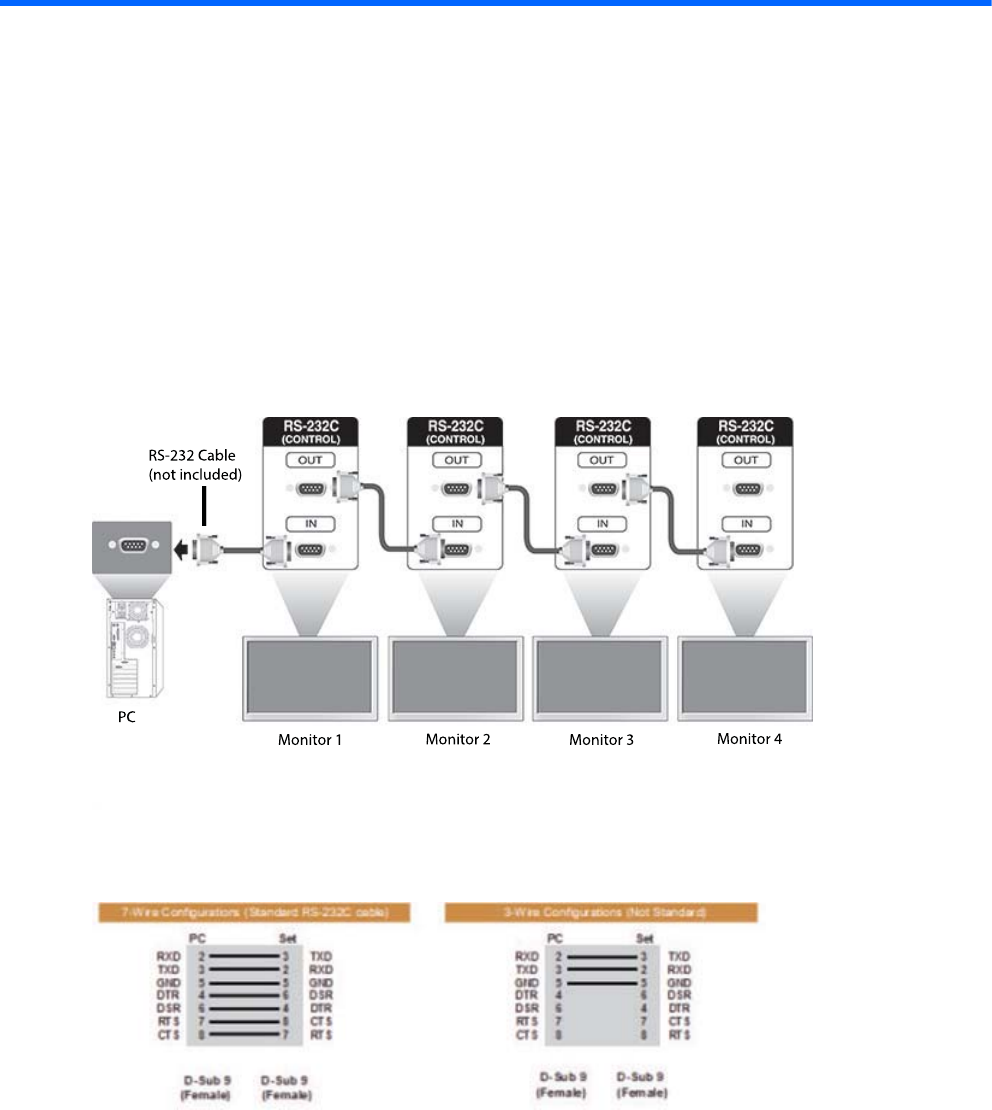

Connecting the cable
Connect the RS-232C cable as shown.
The RS-232C protocol is used for communication between the computer and product. You can turn
the product on/off, select an input source or adjust the OSD menu from your computer.
RS-232C configurations
80 Appendix C Controlling multiple products
