Using PIP/PBP
Displays videos or photos stored in a USB device on a single display by dividing it into the main and
sub screens.

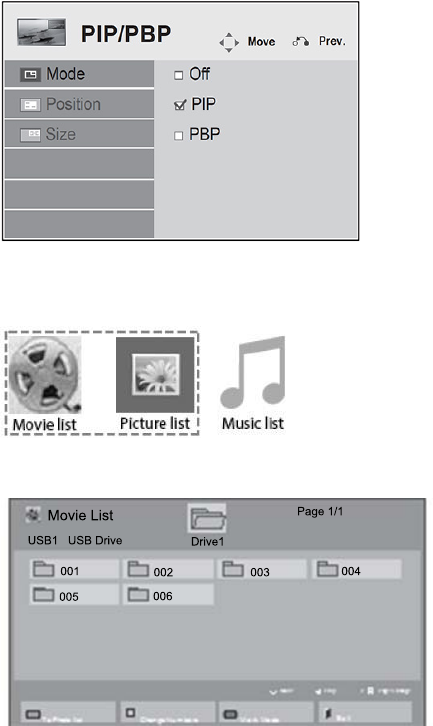

1. Press the MENU button to move to OPTION and press OK.
2. Press PIP/PBP to select PIP or PBP and then press OK.
3. Select Movie List or Photo List from My Media. (With PIP/PBP selected, the Music List is
deactivated.)
4. Select a file you want and then press OK.
Using PIP/PBP 59
