8 Setting up the display for music, videos,
and photos

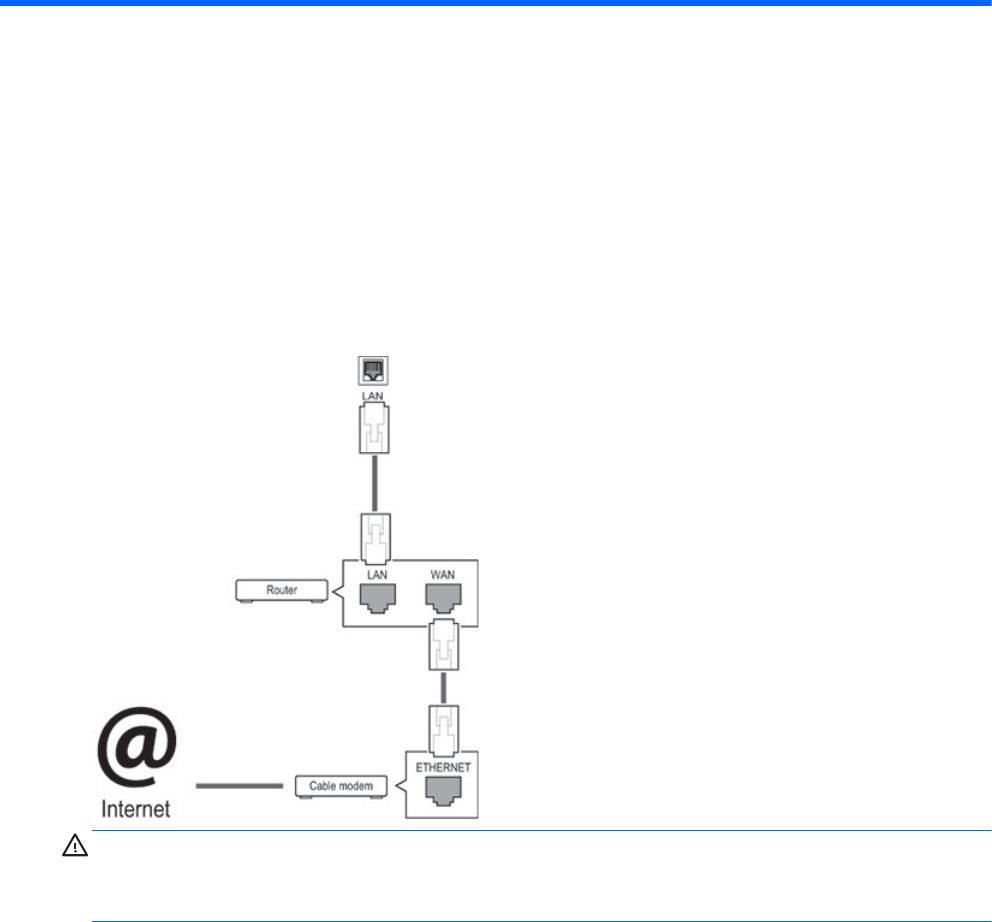

Connect the display to a local area network (LAN) via the LAN port as shown in the following
illustration and set up the network settings. The display only supports wired network connection. After
making a physical connection, a small number of networks may require the display network settings
to be adjusted. For most networks, the display will connect automatically without any adjustments.
For detail information, check your router manual.
CAUTION: Do not connect a modular phone cable to the LAN port.
Since there are various connection methods, please follow the specifications of your
telecommunication carrier.
To set up the network settings (if your display connected automatically, running setup again will not
disrupt the connection):
1. Press MENU to access the main menus.
2. Press the Navigation buttons to scroll to NETWORK and press OK.
3. Press the Navigation buttons to select Network Setting and press OK.
4. If you already set Network Setting, select Resetting. The new connection settings resets the
current network settings.
5. Select IP Auto Setting or IP Manual Setting.
46 Chapter 8 Setting up the display for music, videos, and photos
