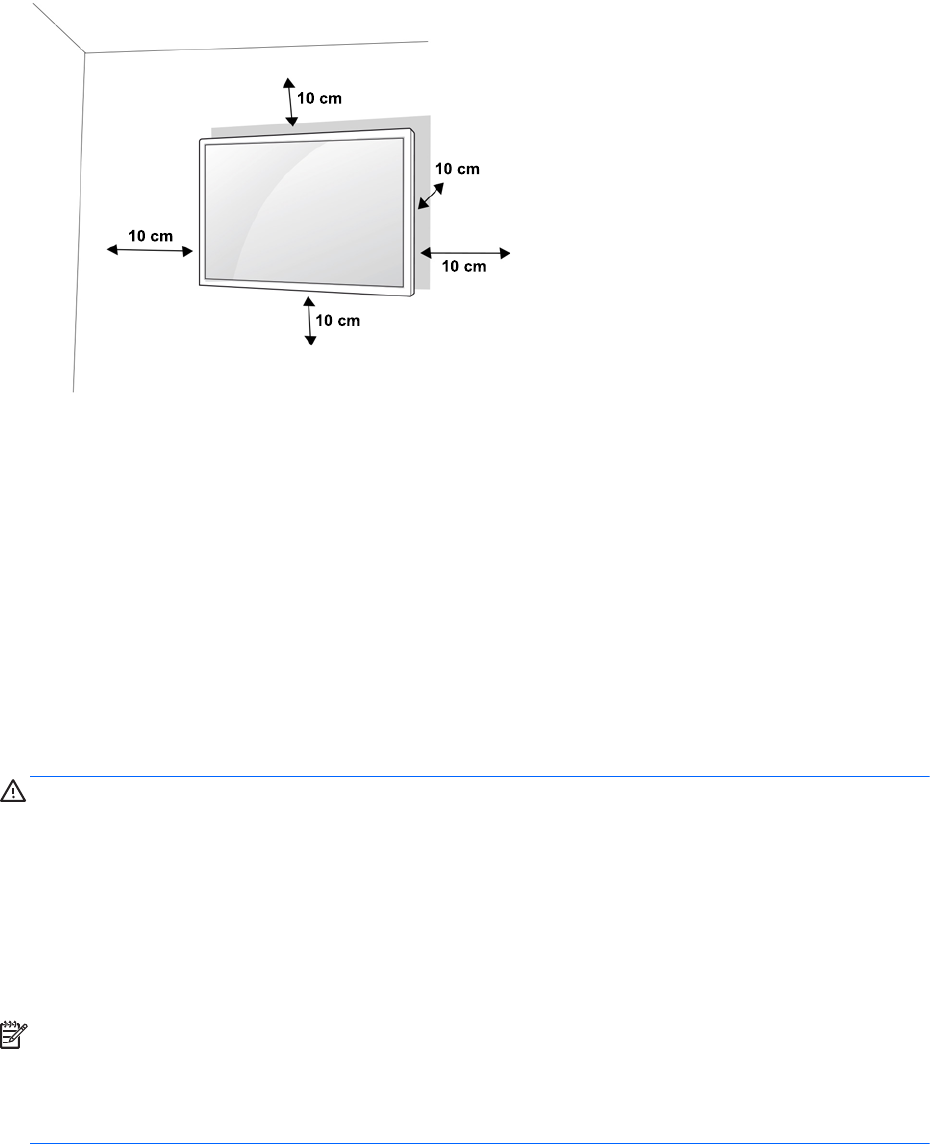

If you intend to mount the display to a wall, attach a wall mounting interface (optional parts) to the
back of the set.
When you install the display using a wall mounting interface (optional parts), attach it carefully so it
will not fall.
1. Use a wall mount and screws in accordance with VESA Standards.
If you use screws longer than the VESA standard, the display might be damaged internally.
If you use improper screws, the product might be damaged and drop from mounted position. In
this case, HP is not responsible for damage.
2. Use VESA standard as follows:
●
785 mm (31 inch) or greater
●
Fastening screw: Diameter 6.0 mm x Pitch 1.0 mm x Length 10 mm
CAUTION: Disconnect the power cord first, and then move or install the display. Otherwise electric
shock may occur.
If you install the display on a ceiling or slanted wall, it may fall and result in severe injury.
Use an authorized HP wall mount and contact the local dealer or qualified personnel.
Do not over tighten the screws as this may cause damage to the display and void your warranty.
Use the screws and wall mounts that meet the VESA standard. Any damages or injuries by misuse or
using an improper accessory are not covered by the warranty.
NOTE: The wall mount bracket is optional. You can obtain additional accessories from your local
dealer.
The length of screws may differ depending on the wall mount. Be sure to use the proper length.
For more information, refer to the manufacturer’s instructions supplied with the wall mount.
