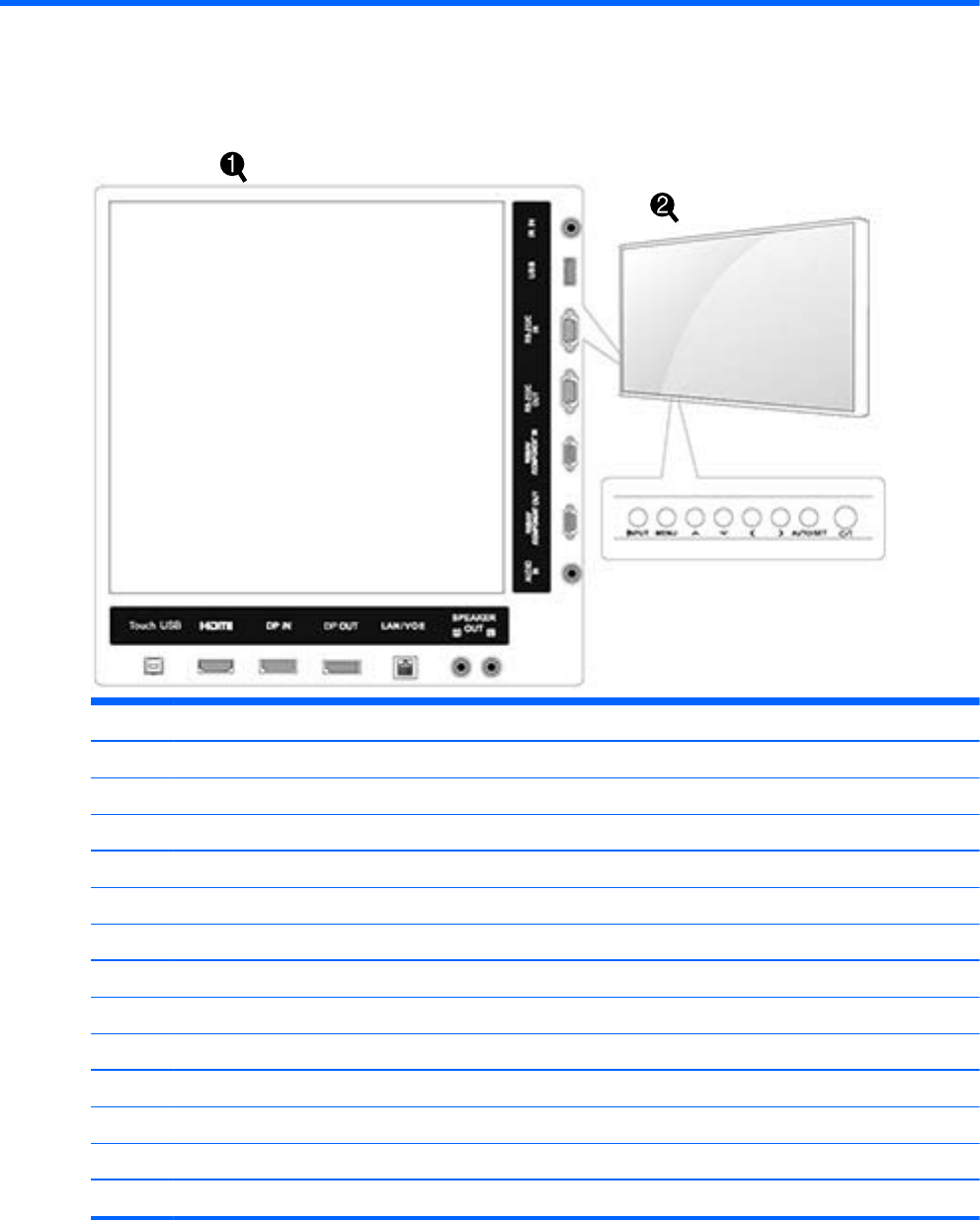

3 Assembling and preparing
Item Connection panel Description
(1) Touch USB Connects a touch USB cable from the computer to the display.
HDMI Connects voice or audio input cable.
DP IN Connects DisplayPort in cable to the display.
DP OUT Connects DisplayPort out cable to the display.
LAN/VOE Connects a local area network cable.
SPEAKER OUT Connects optional external speakers to the display.
AUDIO IN Connects an audio cable to the display.
RGB/AV COMPONENT OUT Connects an RGB/AV component out cable to the display.
RGB/AV COMPONENT IN Connects an RGB/AV component in cable to the display.
RS-232C OUT Connects an RS-232C out cable to the display.
RS-232C IN Connects an RS-232C in cable to the display.
USB Connects a USB cable to the display.
IR IN Connects an IR cable to the display.
