15. The Specify Printer dialog box appears next.

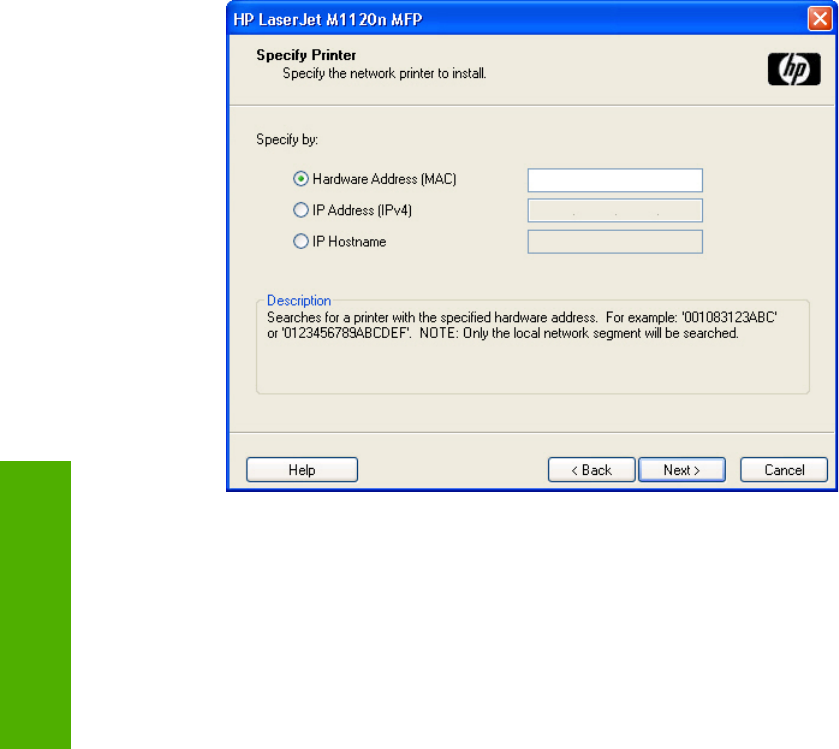

Figure 3-16 Step 15 - Specify Printer dialog box
Click the appropriate option to specify a printer using the Hardware Address (MAC), the IP
Address (IPv4), or the IP Hostname fields. You can find this information by printing a configuration
page for the product. Clicking Next with any of these options takes you to the Printer Not
Found dialog box (step 13) or to the Printer Found dialog box (step 16).
Click Back to return to the Identify Printer dialog box (step 11).
Click Cancel to cancel the installation and go to the User cancelled installation dialog box (step
21).
Printing a configuration page
a. On the product control panel, press Setup.
b. Use the arrow buttons to select Reports, and then press OK.
c. Use the arrow buttons to select Config report, and then press OK.
