TWAIN driver user interface (Macintosh)
To scan a page:
1. Place the page to be scanned on the flatbed scanner
2. Open the Macintosh Image Capture program. The The configuration is not supported. screen
appears.

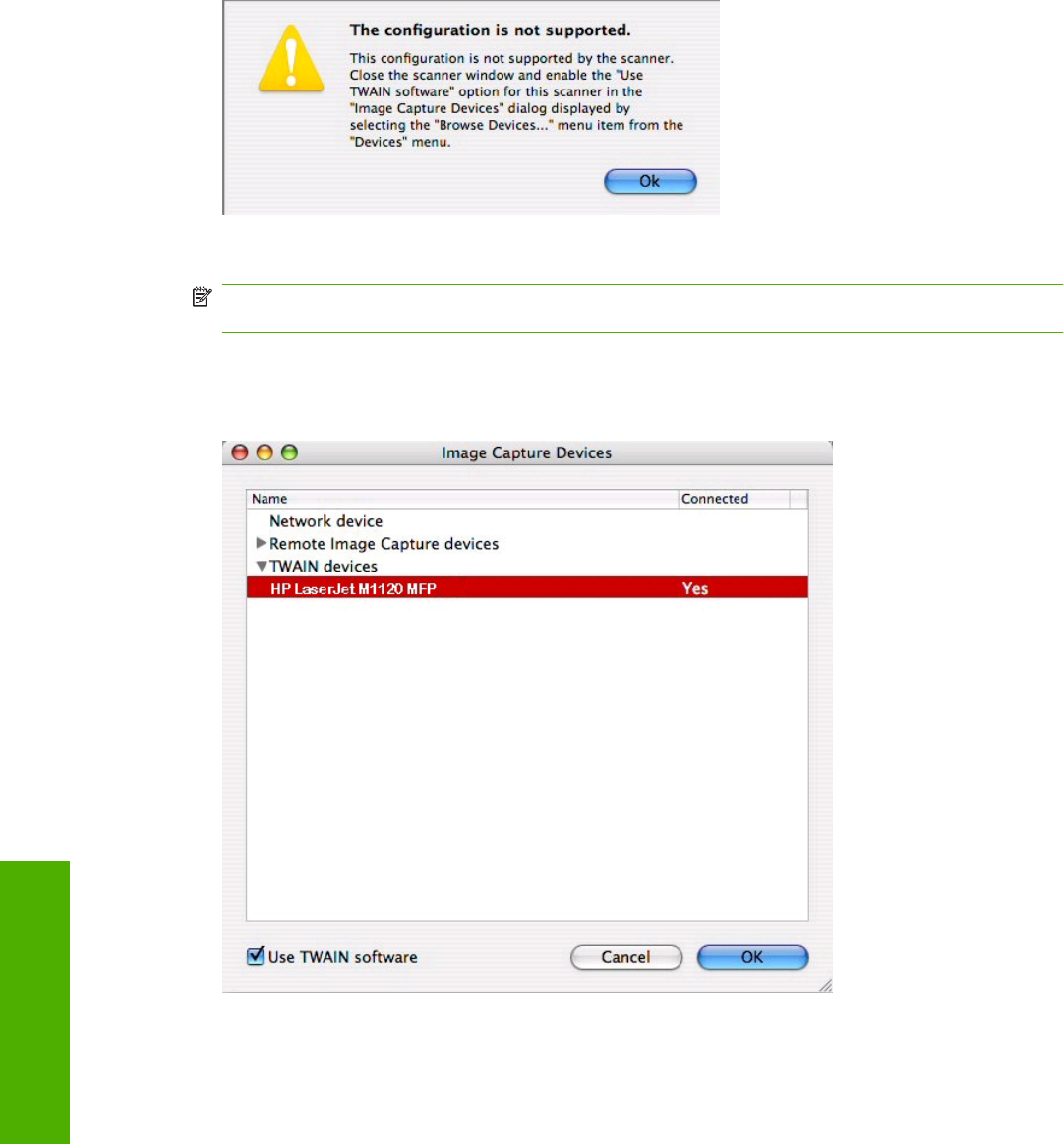

Figure 5-9 The configuration is not supported. screen (Macintosh)
Click OK.
NOTE: The The configuration is not supported. screen only appears the first time that you
scan an image using the TWAIN software.
3. In the toolbar, click Devices, and then click Browse devices. The Image Capture Devices screen
appears.
Figure 5-10 Image Capture Devices screen (Macintosh)
Highlight the device name, select the Use TWAIN software option, and then click OK.
