Reference Guide

Use Different Paper/Covers check box
When the Use Different Paper/Covers check box is selected, the Front Cover, First page, Other
pages, Last page, and Back Cover options become available. Click any of these options and then
select Size is:, Source is:, and Type is: for each option.
Custom Paper Size group
Click the Custom button to open the Custom Paper Size dialog box.

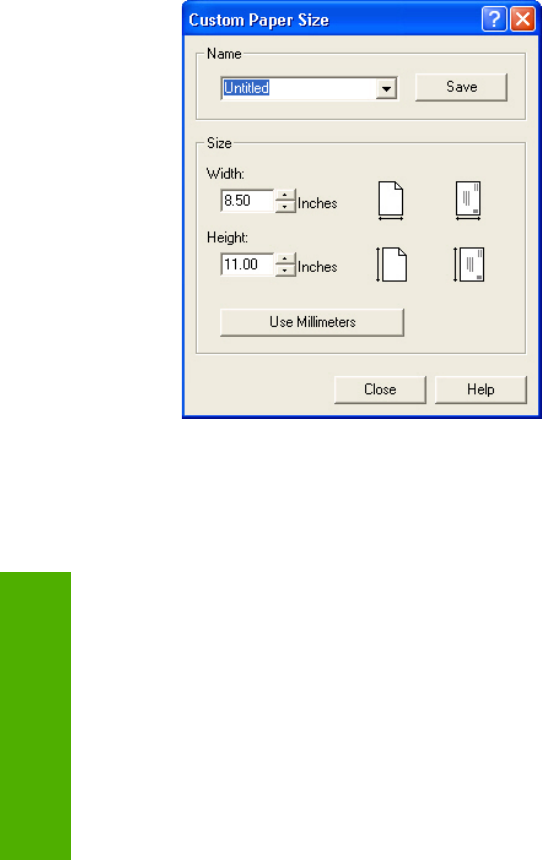

Figure 4-6 Custom Paper Size dialog box
Use the Custom Paper Size dialog box to create or modify custom-paper-size information. The Custom
Paper Size dialog box contains the following options:
●
Name field. Click the text box to type a name for the custom paper size or click the drop-down
menu to select a custom paper size that is already defined.
●
Paper Size group box. If you type in a size that is too large or too small, the driver automatically
adjusts the size.
◦
Width: spin box. Use the spin controls to select the width for the custom paper size, or click
in the text box to type the width.
◦
Height: spin box. Use the spin controls to select the height for the custom paper size, or click
in the text box to type the height.
●
Units group box. Select inches or millimeters to define the custom paper size.
Click Save to save the custom size or click Close to return to the Paper/Quality tab.
Source is:
The Source is: setting specifies the source tray to use for printing a document.
