3. Select the custom MAC address range.
4. Click Delete. You are prompted to confirm your choice.
5. Click OK.
WWN Addresses
NOTE: In VCEM 1.40 and later, a new “VCEM-defined” range has been reserved, from which
VCEM allocates WWN addresses. VCEM no longer uses the “HP Pre-defined” range for WWN
address allocation. However, server profiles created before VCEM 1.40 will continue to use the
HP Pre-defined addresses already assigned to them.
The WWN range used by the VCEM domain must be unique within the environment. HP provides
a set of predefined addresses that is reserved for Virtual Connect and VCEM and does not conflict
with server factory-default WWNs.
Overall, WWN range management in VCEM is very similar to MAC ranges. VCEM allocates
WWNs automatically according to VC Domain Group configuration using HP-predefined,
VCEM-defined, or user-defined WWNs. You can use the HP-predefined range only to import server
profiles or server profiles created on previous versions of VCEM.
To access WWN addresses from the VCEM home page, click the World Wide Names hyperlink.
The WWN Ranges List page appears.

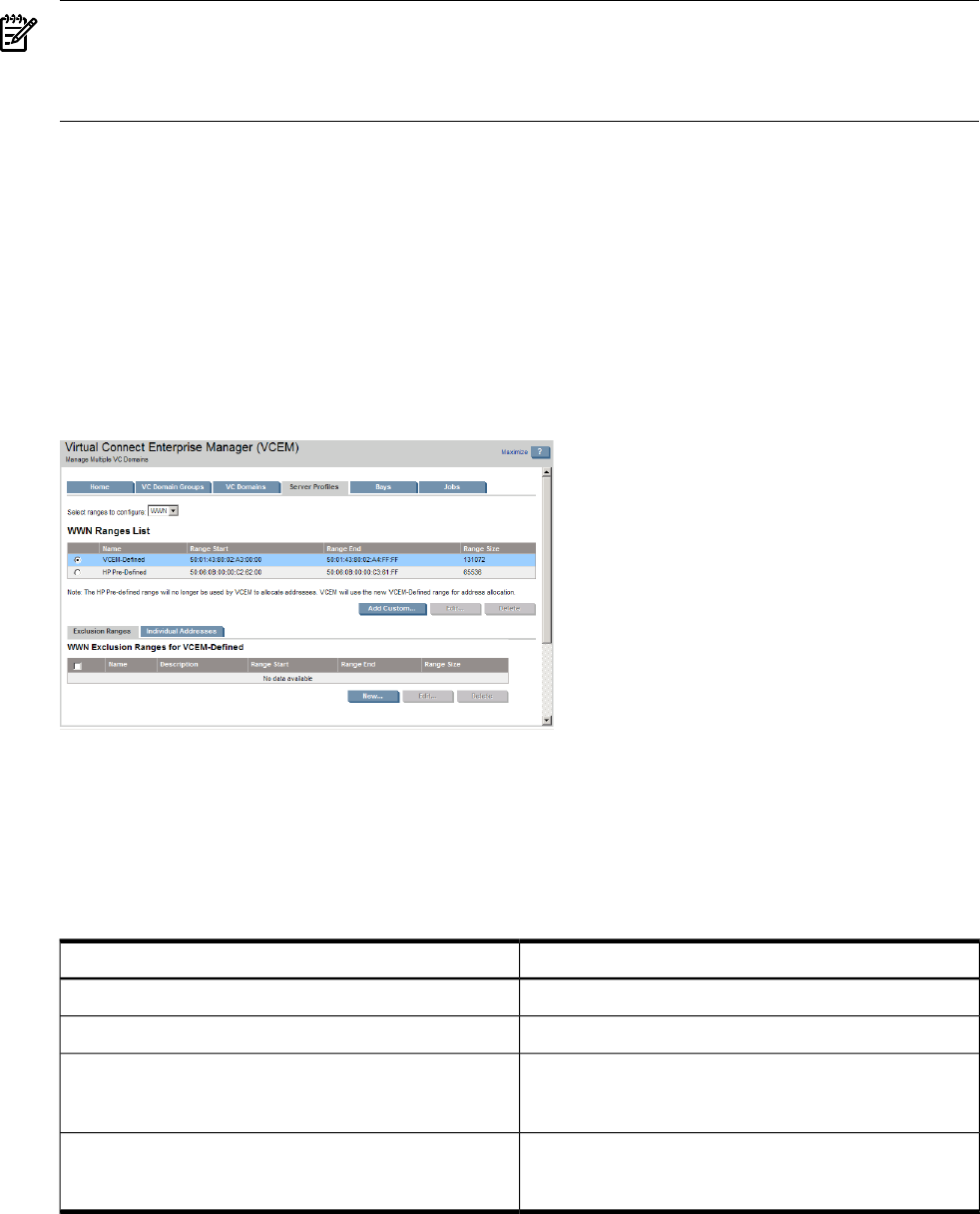

Figure 7-2 WWN Ranges List page
Tracking individual WWN addresses
Individual addresses in a WWN range (HP-predefined, VCEM-defined, or user-defined) can be
monitored by clicking on the Individual addresses secondary tab within the WWN Ranges List
page.
The following table lists and describes the WWN address status at Individual address page.
DescriptionItem
Address available to use in VCEM.Free
Address currently used by a server profile in VCEM.In use
Addresses used by server profiles in a VC Domain that has
been released back to Virtual Connect Manager and no
longer managed by VCEM.
External Address
Addresses that reside in a VCEM Exclusion range list.
VCEM will not allocate any address that is marked as
excluded.
Excluded Addresses
