DescriptionSetting
Click CHAP or CHAPM to enable the following:
• CHAP or CHAPM user name—Required if the
authentication method is CHAP or CHAPM. This is
the user name for authentication. The user name
length is a maximum of 223 characters. If the user
name contains nonalphanumeric characters, it must
be enclosed in double quotes.
• CHAP or CHAPM Secret—Required if the
authentication method is CHAP or CHAPM. This is
the password for authentication and is specified as
a string or a long hexadecimal value starting with
0x. This value must be at least 96 bits (12 bytes, 24
hexadecimal digits) long and at most 16 bytes (32
hexadecimal digits) excluding separators (‘ ‘ , ‘-‘, ‘.’,
‘:’, ‘,’ ).
CHAP or CHAPM user names and passwords
Initiator Network Configuration
VLAN number used by the iSCSI initiator uses for all
sent and received packets. Valid VLAN number values
are between 1 to 4094.
VLAN ID (optional)
Address used by the iSCSI initiator. This value is in
dotted-decimal format.
IP Address (required)
IP network mask used by the iSCSI initiator. This value
is in dotted-decimal format.
Netmask (required)
Default IP route used by the iSCSI initiator. This value is
in dotted-decimal format.
Gateway (optional)
7. In the Fibre Channel SAN connections table, set the Fibre Channel SAN connections. To add
more connections in a VC Domain, click Add FC SAN Connection. To remove a connection,
click the X icon at the right side of the table.
8. (Optional) In the Fibre Channel Boot Parameters table, enter the boot parameters for defined
Fibre Channel SAN connections. The default boot parameter is Use Bios. The World Wide
Part Number (WWPN) and Logical Unit Number (LUN) are required only for the primary and
secondary SAN boot.
9. (Optional) To create the bay assignment, select VC Domain, and then select an available
target server bay. Auxiliary blades are displayed in a bay range as shown in the following
figure:

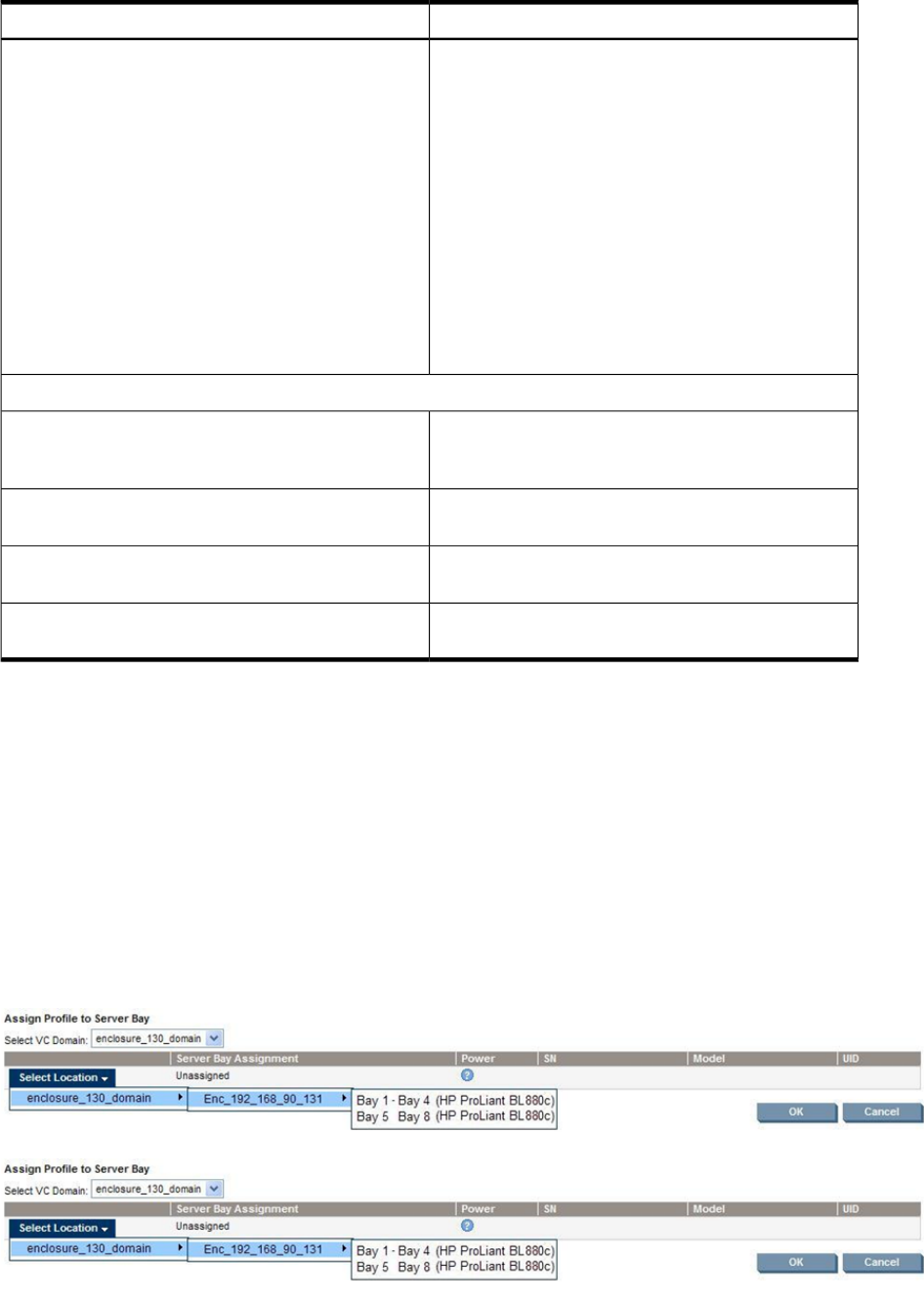

Figure 5-3 Auxiliary Blade Range
If a server profile is not assigned to a server bay or fails to assign to a server bay, then that
server profile becomes unassigned to a VC Domain Group.
Creating a server profile 65
